NOF171-SSTChamber

Product Detail (Click to Enlarge)

Overview

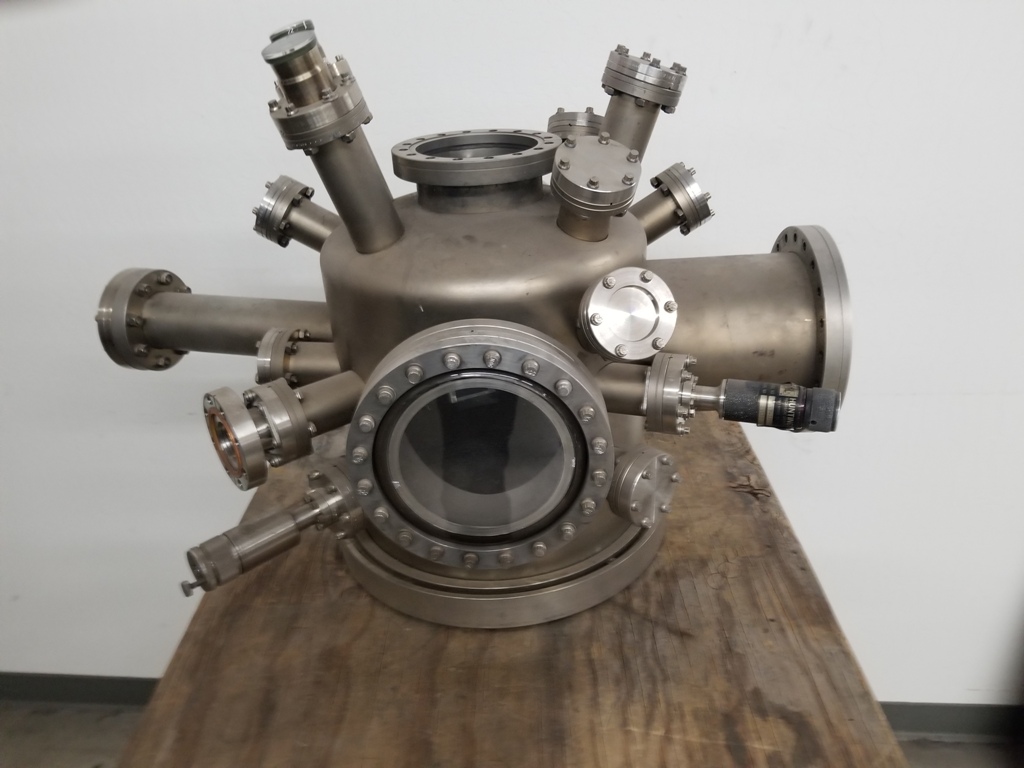

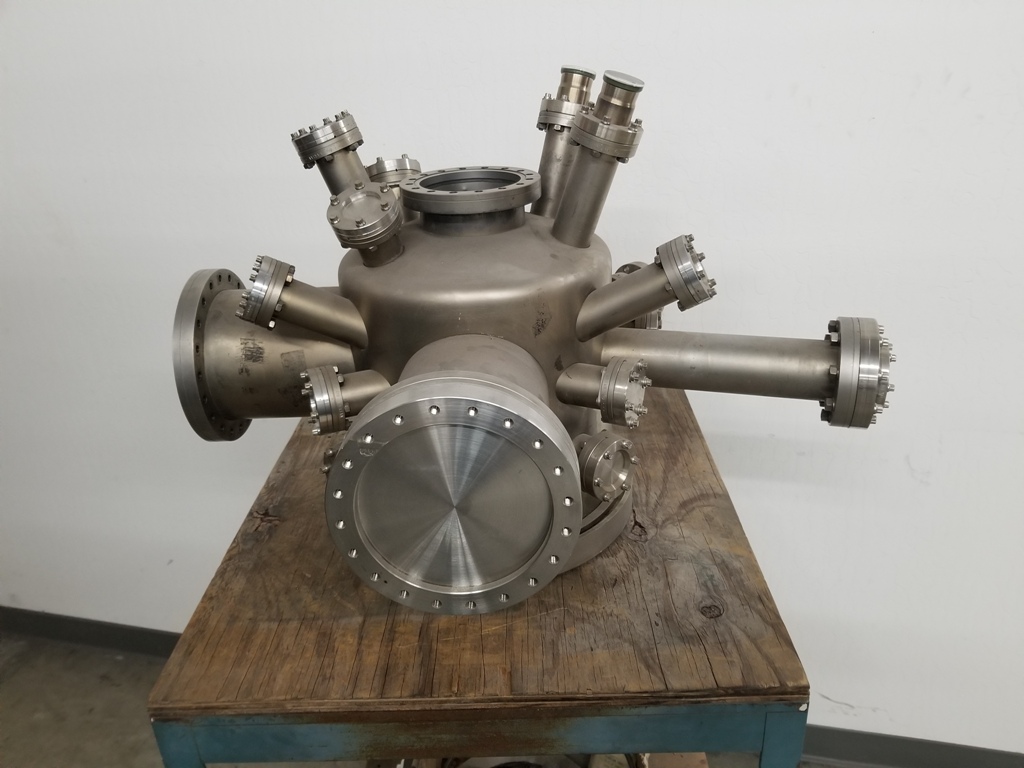

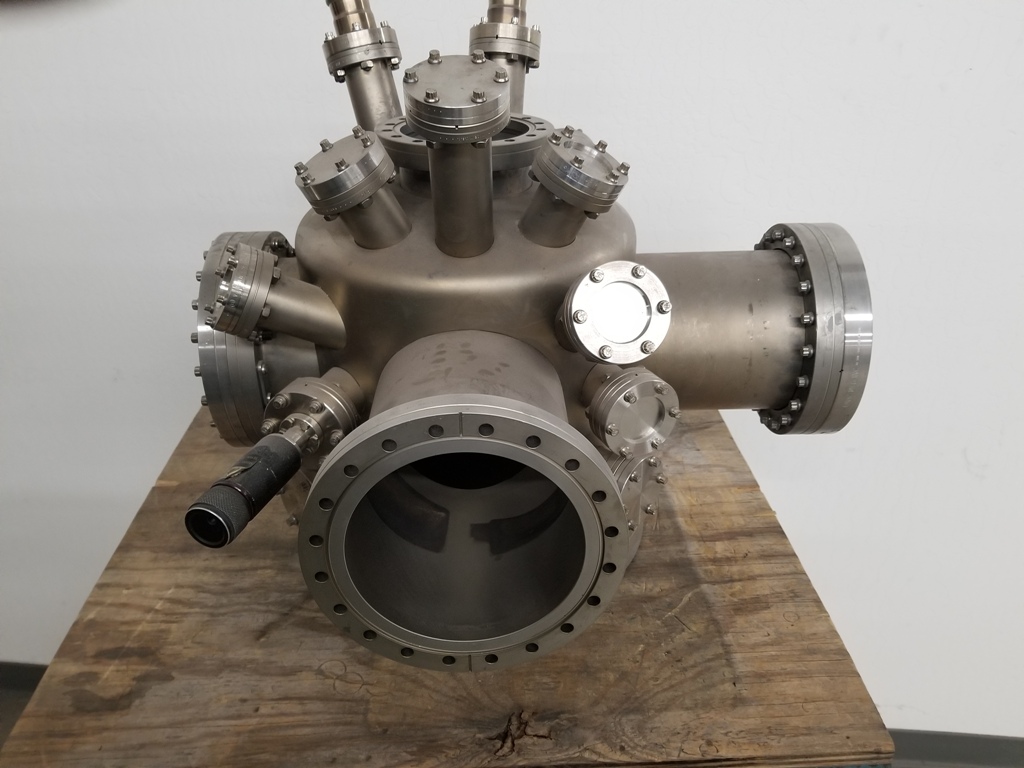

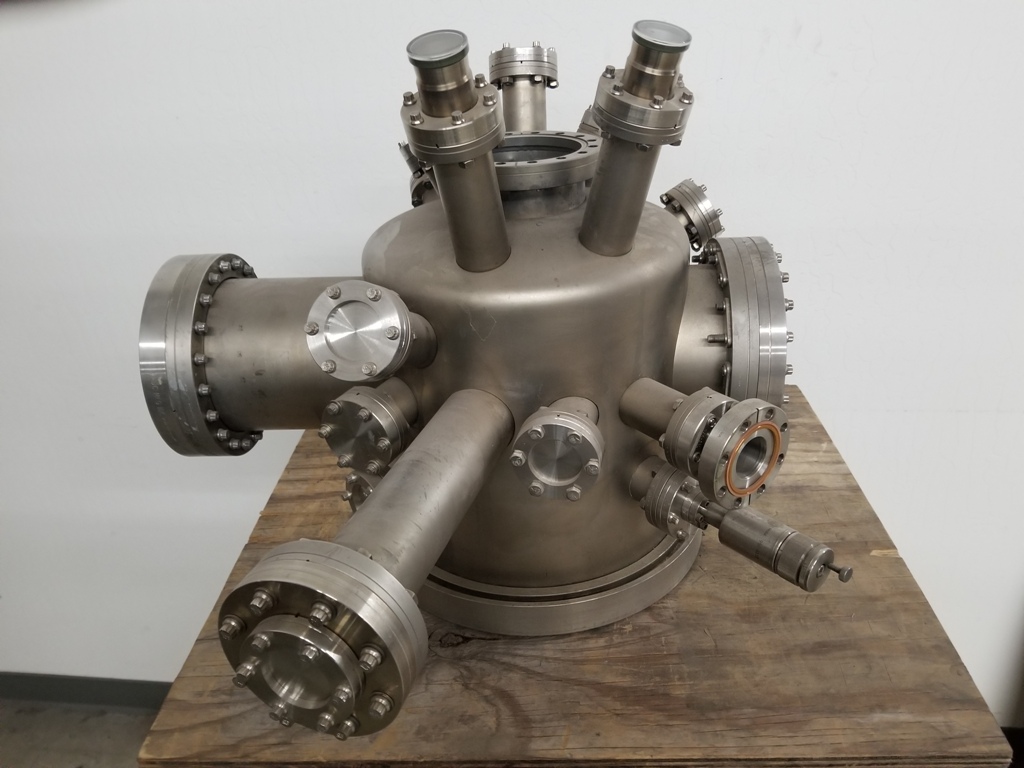

This used stainless high vacuum chamber has inside dimensions of 14" tall and 11.25" ID.

This chamber has the following items:

14" OD Varian style clamp type copper wire sealed bottom flange

Three 8" OD Con-flat flange ports on the top

One 6" ODĀ  Con-flat flange port on the side

One 4.5" OD Con-flat flange port on the side

Twelve 2.75" OD Con-flat flange ports on the side

Five 2.75" OD Con-flat flange ports on the top

Thirteen blank 2.75" OD Con-flat flanges

One blank 8" OD Con-flat flange

One 8" OD Con-flat View port

Two 2.75" OD Con-flat house keeper sealed view ports

Two 2.75" OD to 1.33 OD Con-flat reducer flanges

One 4.5" OD to 2.75" OD Con-flat reducer flange

One Varian rotary motion feed through on a 1.33 OD Con-flat flange

One Huntington linear motion feed through on a 1.33 OD Con-flat flangeĀ

Order Part

$3,500.00 USD per Unit

Price Inquiry Form
