Fittings

"A" Dimensions may vary from lot-to-lot.
Contact your customer representative if your
application requires exact dimensions.

Material is 304SST.

Duniway part# Description Price Request Image

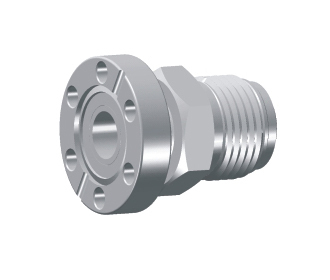

A0275X025VCR-M 2.75" Conflat to 1/4" Male VCR Adapter $75.00
A0275X050VCR-M 2.75" Conflat to 1/2" Male VCR Adapter
Duniway part# Description Price Request Image
BP-100AL Blank Base-Plate Plug for 1.00" Hole, Aluminum $50.00
BP-100SST Blank Base-Plate Plug for 1.00" Hole, SST $75.00

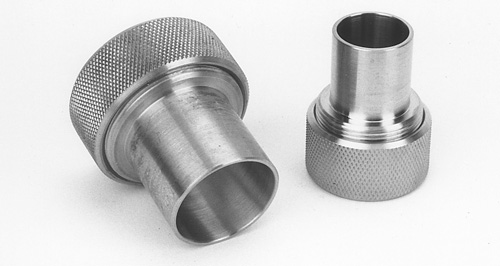

Duniway part# Description Price Request Image

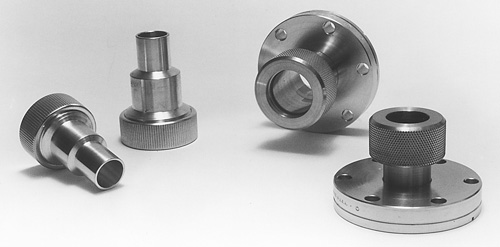

CP-075-SS Compression Port, SST, Port ID=0.75"
CP-100-SS Compression Port, SST, Port ID=1.00" $70.00
CP-112-SS Compression Port, SST, Port ID=1.125" $80.00
Duniway part# Description Price Request Image
CP-275-075 Compression Port, SST, Port ID=0.75", on 2.75" CF Flange $120.00
CP-275-100 Compression Port, SST, Port ID=1.00", on 2.75" CF Flange $125.00
Duniway part# Description Price Request Image

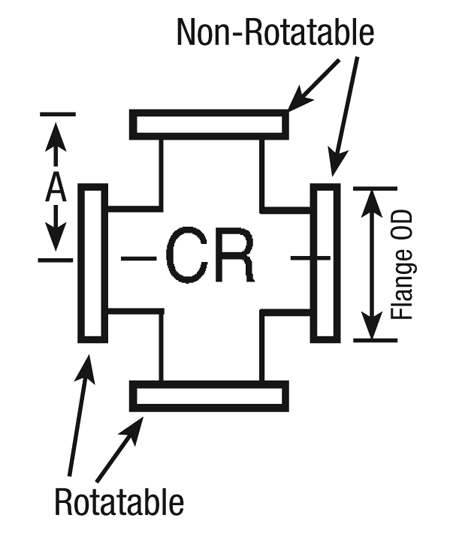

CR-0133 CF Cross, Flange OD 1.33", Dimension "A" 1.50", Tube OD 0.75" $125.00
CR-0218 CF Cross, Flange OD 2.125", Dimension "A" 2.00", Tube OD 1.00"
CR-0275 CF Cross, Flange OD 2.75", Dimension "A" 2.50", Tube OD 1.50" $155.00
CR-0338 CF Cross, Flange OD 3.375", Dimension "A" 3.20", Tube OD 2.00"
CR-0450 CF Cross, Flange OD 4.50", Dimension "A" 3.40", Tube OD 2.50" $450.00
CR-0458 CF Cross, Flange OD 4.625", Dimension "A" 3.60", Tube OD 3.00"
CR-0600 CF Cross, Flange OD 6.00", Dimension "A" 5.30", Tube OD 4.00" $675.00
CR-0675 CF Cross, Flange OD 6.75", Dimension "A" 4.90", Tube OD 5.00"
CR-0800 CF Cross, Flange OD 8.00", Dimension "A" 6.10", Tube OD 6.00"
CR-1000 CF Cross, Flange OD 10.00", Dimension "A" 8.00", Tube OD 8.00"
Duniway part# Description Price Request Image
CR-0450-0275 CF 4.50" to CF 2.75" Reducing Cross $380.00
Duniway part# Description Price Request Image
CRF-450-275R Conical Reducer, 4.50" CF to 2.75" Rotatable CF; A=4.5", B=2.75", C=2.96" $170.00
Duniway part# Description Price Request Image

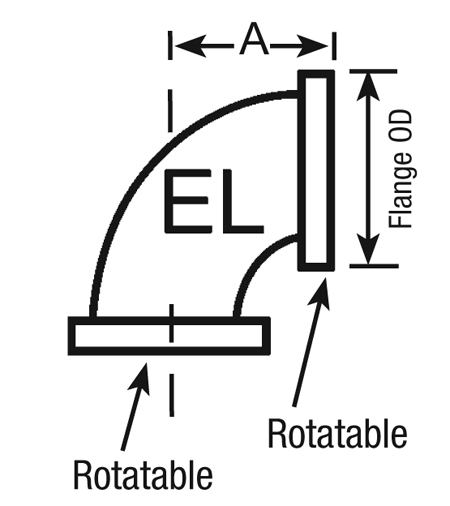

EL-0133 CF Elbow, Flange OD 1.33", Dimension "A" 1.60", Tube OD 0.75" $67.00
EL-0218 CF Elbow, Flange OD 2.125", Dimension "A" 1.70", Tube OD 1.00" $75.00
EL-0275 CF Elbow, Flange OD 2.75", Dimension "A" 2.50", Tube OD 1.50" $85.00
EL-0338 CF Elbow, Flange OD 3.375", Dimension "A" 3.20", Tube OD 2.00" $180.00
EL-0450 CF Elbow, Flange OD 4.50", Dimension "A" 4.10", Tube OD 2.50" $275.00
EL-0458 CF Elbow, Flange OD 4.625", Dimension "A" 4.90", Tube OD 3.00"
EL-0600 CF Elbow, Flange OD 6.00", Dimension "A" 6.50", Tube OD 4.00"
Duniway part# Description Price Request Image
F0275-1/4SWG 2.75" Conflat to 1/4" Swagelok Adapter $67.00
Duniway part# Description Price Request Image

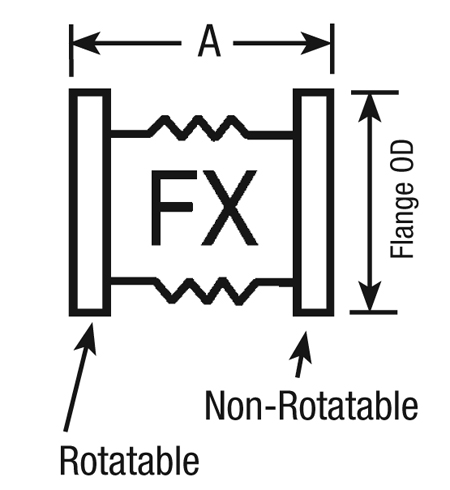

FX-0133 CF Flex Coupling, Flange OD 1.33", Length 3.00", Tube OD 0.75" $110.00
FX-0133-10 CF Flex Coupling, Flange OD 1.33", Length 10.00", Tube OD 0.75" $145.00
FX-0218 CF Flex Coupling, Flange OD 2.125", Length 3.44", Tube OD 1.00"
FX-0275 CF Flex Coupling, Flange OD 2.75", Length 3.60", Tube OD 1.50" $170.00
FX-0338 CF Flex Coupling, Flange OD 3.375", Length 4.00", Tube OD 2.00"
FX-0450 CF Flex Coupling, Flange OD 4.50", Length 6.25", Tube OD 2.50" $345.00
FX-0458 CF Flex Coupling, Flange OD 4.625", Length 7.00", Tube OD 3.00"
FX-0600 CF Flex Coupling, Flange OD 6.00", Length 7.62", Tube OD 4.00"
FX-0675 CF Flex Coupling, Flange OD 6.75", Length 7.00", Tube OD 5.00"
FX-0800 CF Flex Coupling, Flange OD 8.00", Length 8.00", Tube OD 6.00"
FX-1000 CF Flex Coupling, Flange OD 10.00", Length 7.00", Tube OD 8.00"
Duniway part# Description Price Request Image

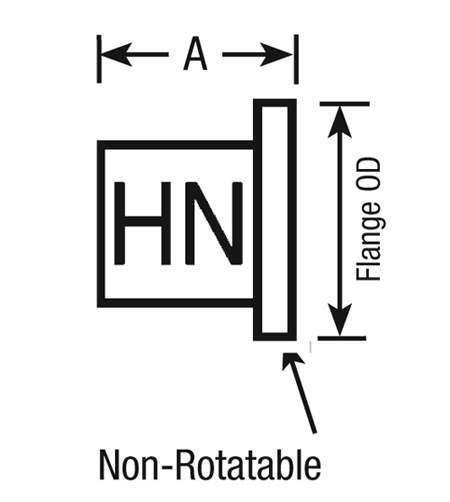

HN-0133 CF Half Nipple , Flange OD 1.33", Length 1.50", Tube OD 0.75" $33.00
HN-0218 CF Half Nipple , Flange OD 2.125", Length 2.00", Tube OD 1.00"
HN-0275 CF Half Nipple , Flange OD 2.75", Length 2.50", Tube OD 1.50" $43.00
HN-0338 CF Half Nipple , Flange OD 3.375", Length 3.20", Tube OD 2.00" $81.00
HN-0450 CF Half Nipple, Flange OD 4.50", Length 4.10", Tube OD 2.50" $115.00
HN-0458 CF Half Nipple, Flange OD 4.625", Length 3.50", Tube OD 3.00"
HN-0600 CF Half Nipple, Flange OD 6.00", Length 5.30", Tube OD 4.00" $170.00
HN-0675 CF Half Nipple, Flange OD 6.75", Length 4.90", Tube OD 5.00"
HN-0800 CF Half Nipple , Flange OD 8.00", Length 6.60", Tube OD 6.00" $245.00
HN-1000 CF Half Nipple, Flange OD 10.00", Length 8.00", Tube OD 8.00"

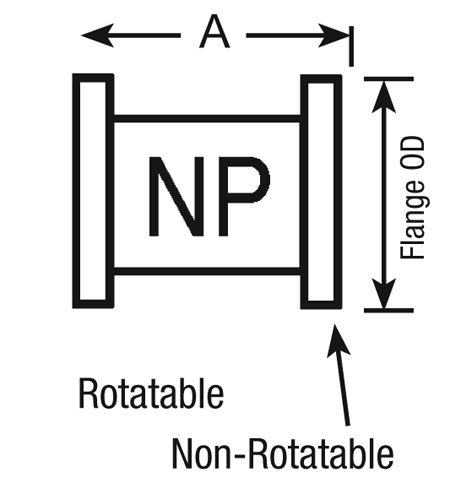

Duniway part# Description Price Request Image
NP-0133 CF Nipple, Flange OD 1.33", Length 3.00", Tube OD 0.75" $57.00
NP-0218 CF Nipple, Flange OD 2.125", Length 4.10", Tube OD 1.00" $65.00
NP-0275 CF Nipple , Flange OD 2.75", Length 4.90", Tube OD 1.50" $70.00
NP-0338 CF Nipple , Flange OD 3.375", Length 6.40", Tube OD 2.00" $165.00
NP-0450 CF Nipple, Flange OD 4.50", Length 8.20", Tube OD 2.50" $225.00
NP-0458 CF Nipple, Flange OD 4.625", Length 7.10", Tube OD 3.00"
NP-0600 CF Nipple, Flange OD 6.00", Length 10.60", Tube OD 4.00" $270.00
NP-0675 CF Nipple, Flange OD 6.75", Length 9.90", Tube OD 5.00"
NP-0800 CF Nipple, Flange OD 8.00", Length 13.10", Tube OD 6.00"
NP-1000 CF Nipple, Flange OD 10.00", Length 16.00", Tube OD 8.00"

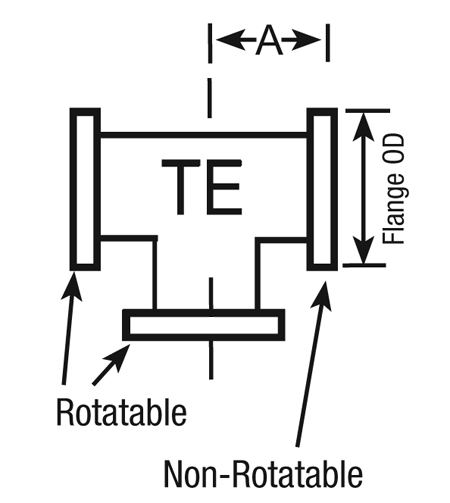

Duniway part# Description Price Request Image
TE-0133 CF Tee, Flange OD 1.33", Dimension "A" 1.50", Tube OD 0.75" $98.00
TE-0218 CF Tee, Flange OD 2.125", Dimension "A" 2.00", Tube OD 1.00" $120.00
TE-0275 CF Tee, Flange OD 2.75", Dimension "A" 2.50", Tube OD 1.50" $130.00
TE-0338 CF Tee, Flange OD 3.375", Dimension "A" 3.20", Tube OD 2.00" $255.00
TE-0450 CF Tee, Flange OD 4.50", Dimension "A" 3.40", Tube OD 2.50" $320.00
TE-0458 CF Tee, Flange OD 4.625", Dimension "A" 3.60", Tube OD 3.00" $360.00
TE-0600 CF Tee, Flange OD 6.00", Dimension "A" 4.30", Tube OD 4.00" $440.00
TE-0675 CF Tee, Flange OD 6.75", Dimension "A" 4.90", Tube OD 5.00"
TE-0800 CF Tee, Flange OD 8.00", Dimension "A" 6.10", Tube OD 6.00"
TE-1000 CF Tee, Flange OD 10.00", Dimension "A" 7.50", Tube OD 8.00"

Price Inquiry Form
