Glass Ion Gauge Tubes


Operating pressure: 2 x 10-10 to 1 x 10-3 Torr
Torr Sensitivity: 10/Torr
X-ray limit: 2 x 10-10 Torr

Other Information:
Glass Ion Gauge Tube Information
Hot Filament Ion Gauge Tubes

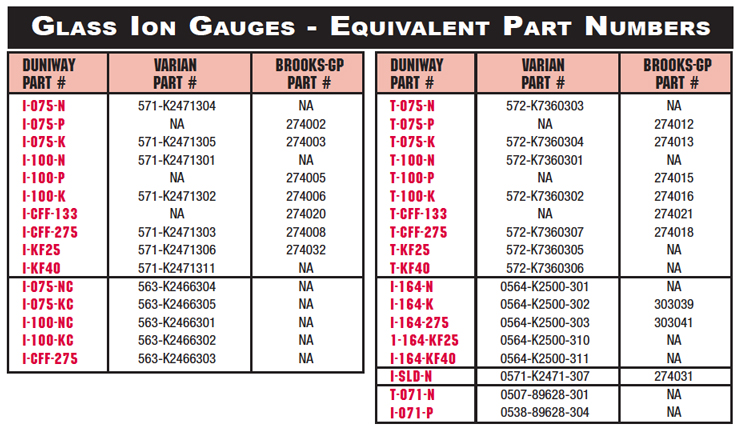

Ion Gauge Tube Cross Reference List

Duniway part# Description Price Request Image

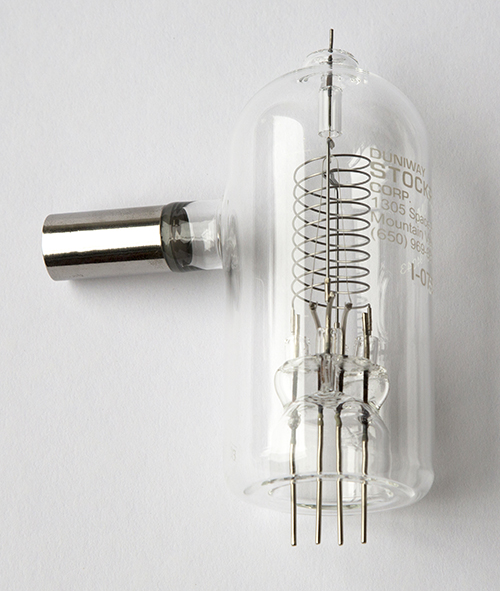

I-075-K Uncoated Glass Ion Gauge Tube, Iridium Filament, 0.75" Diameter Kovar Port $280.00
Duniway part# Description Price Request Image

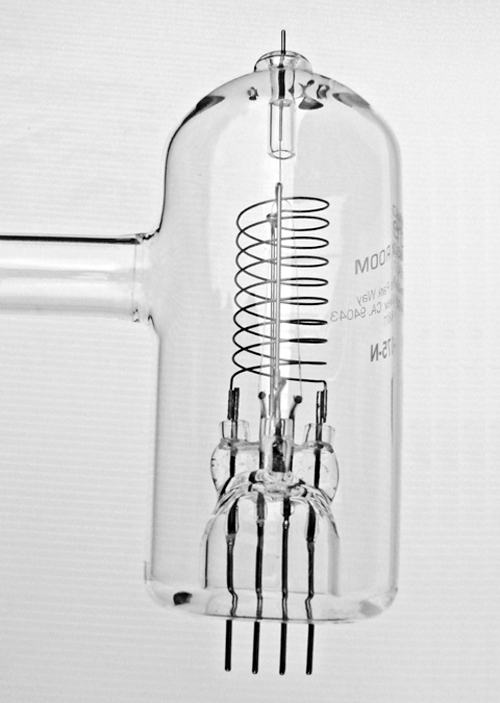

I-075-N Uncoated Glass Ion Gauge Tube, Iridium Filament, 0.75" Diameter Schott Glass Port $237.00
Duniway part# Description Price Request Image

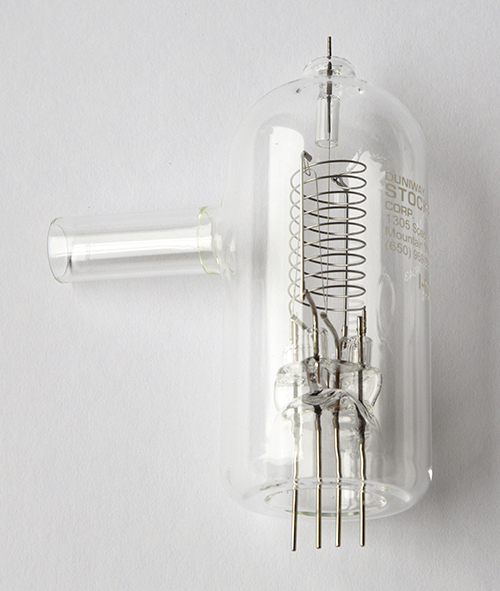

I-075-P Uncoated Glass Ion Gauge Tube, Iridium Filament, 0.75" Diameter Pyrex Glass Port $240.00
Duniway part# Description Price Request Image

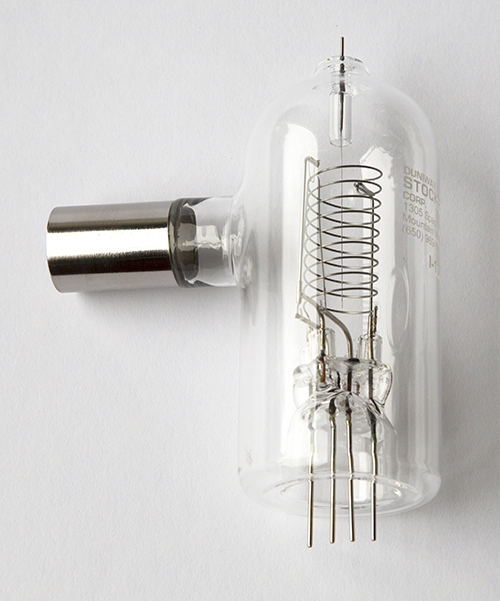

I-100-K Uncoated Glass Ion Gauge Tube, Iridium Filament, 1.0" Diameter Kovar Port $280.00
Duniway part# Description Price Request Image

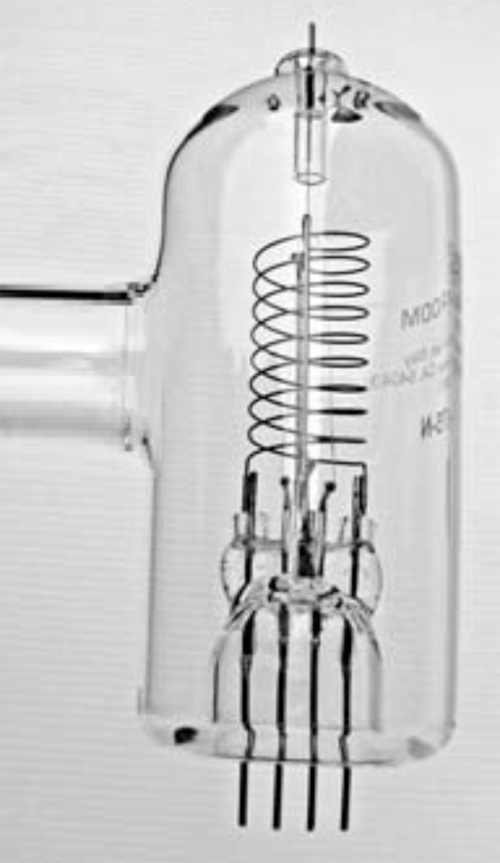

I-100-N Uncoated Glass Ion Gauge Tube, Iridium Filament, 1.0" Diameter Schott Glass Port $237.00
Duniway part# Description Price Request Image

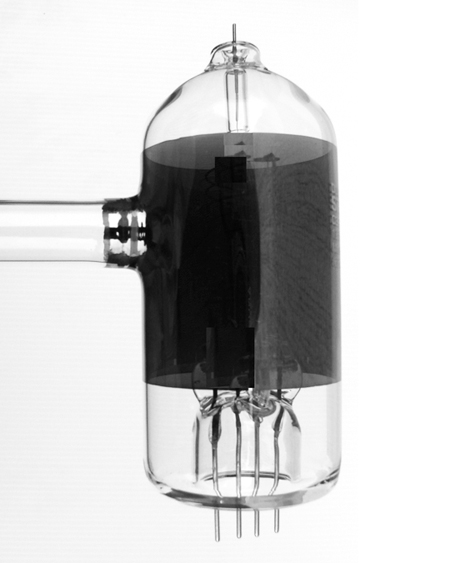

I-100-NC Coated Glass Ion Gauge Tube, Iridium Filament, 1.0" Diameter Schott Glass Port $215.00
Duniway part# Description Price Request Image
I-100-P Uncoated Glass Ion Gauge Tube, Iridium Filament, 1.0" Diameter Pyrex Glass Port $240.00
Duniway part# Description Price Request Image

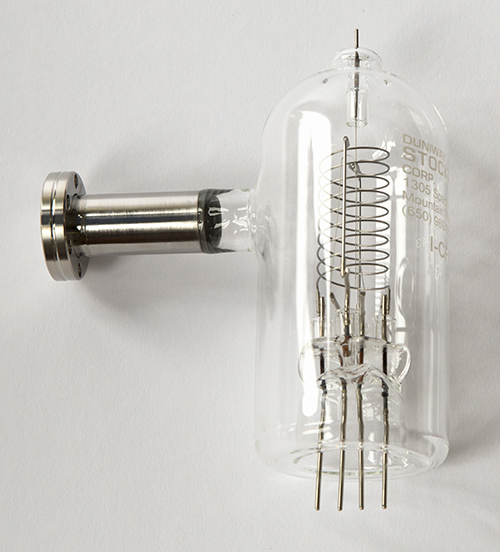

I-CFF-133 Uncoated Glass Ion Gauge Tube,Iridium Filament, 1.33" CF Flanged Port $355.00
Duniway part# Description Price Request Image

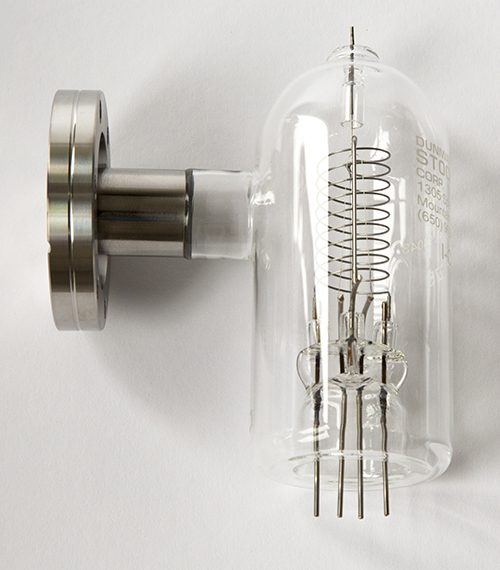

I-CFF-275 Uncoated Glass Ion Gauge Tube, Iridium Filament, 2.75" CF Flanged Port $355.00
Duniway part# Description Price Request Image

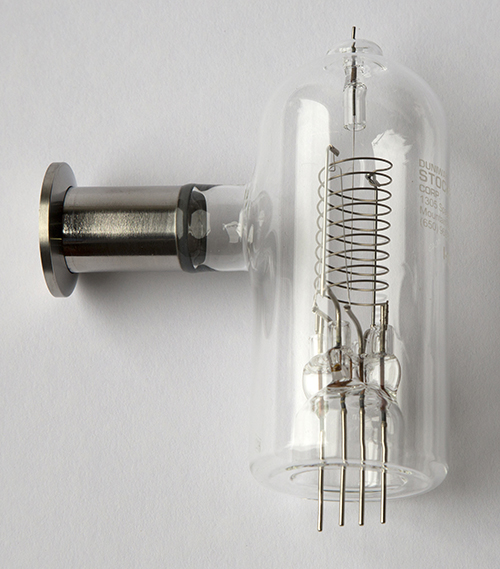

I-KF25 Uncoated Glass Ion Gauge Tube, Iridium Filament, KF25 Flanged Port $260.00
Duniway part# Description Price Request Image

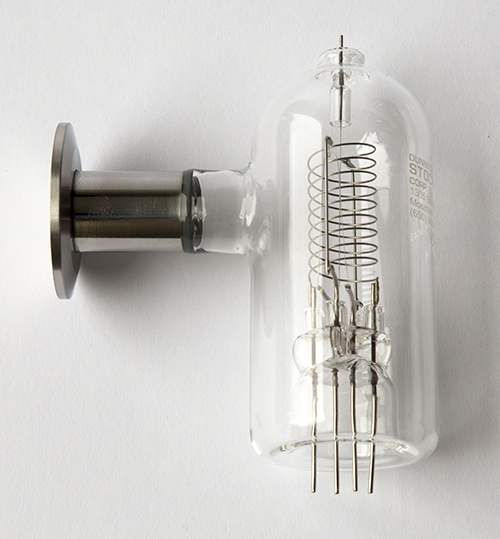

I-KF40 Uncoated Glass Ion Gauge Tube, Iridium Filament, KF40 Flanged Port $260.00
Duniway part# Description Price Request Image

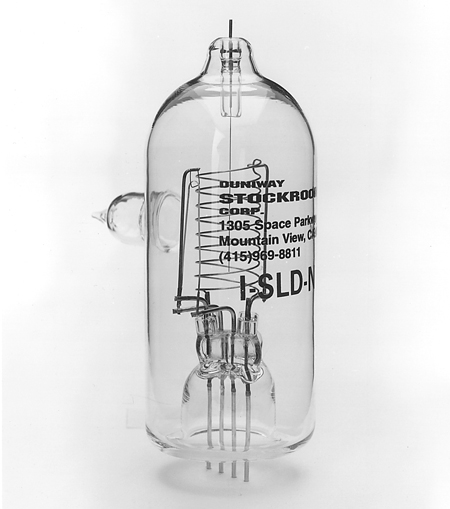

I-SLD-N Uncoated Sealed Glass Ion Gauge Tube, Iridium Filament, 0.75" Diameter Schott Glass Port, Sealed $365.00
Duniway part# Description Price Request Image

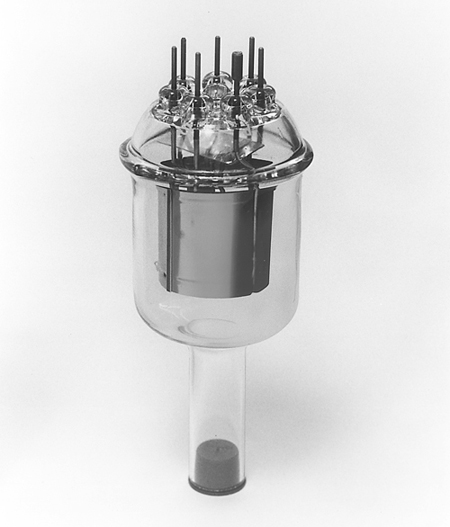

T-071-N Glass Hot Filament Triode Ion Gauge Tube, Tungsten Coated Filament, 0.709" Diameter Schott Glass Port. Hot Filament Triode Tube X-ray limit: 1 x 10E(-7) Torr $150.00
Duniway part# Description Price Request Image

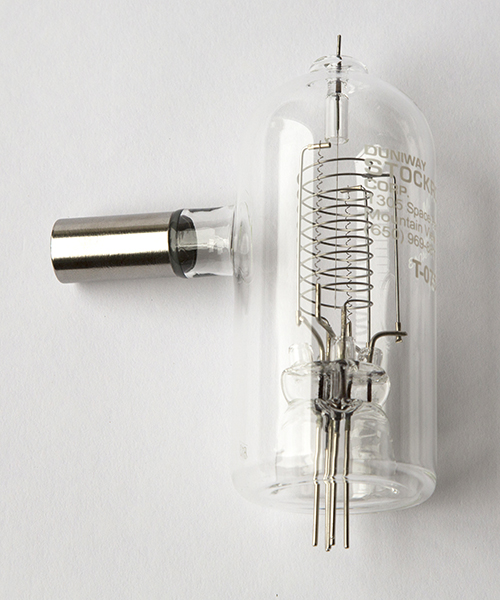

T-075-K Uncoated Glass Ion Gauge Tube, Tungsten Filament, 0.75" Diameter Kovar Port $234.00
Duniway part# Description Price Request Image

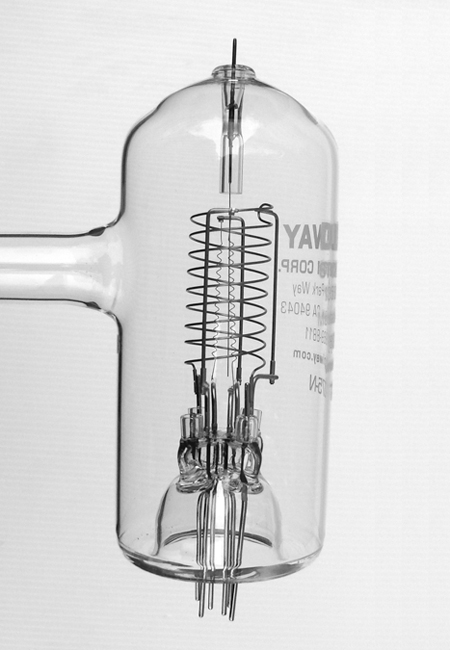

T-075-N Uncoated Glass Ion Gauge Tube, Tungsten Filament, 0.75" Diameter Schott Glass Port $189.00
Duniway part# Description Price Request Image

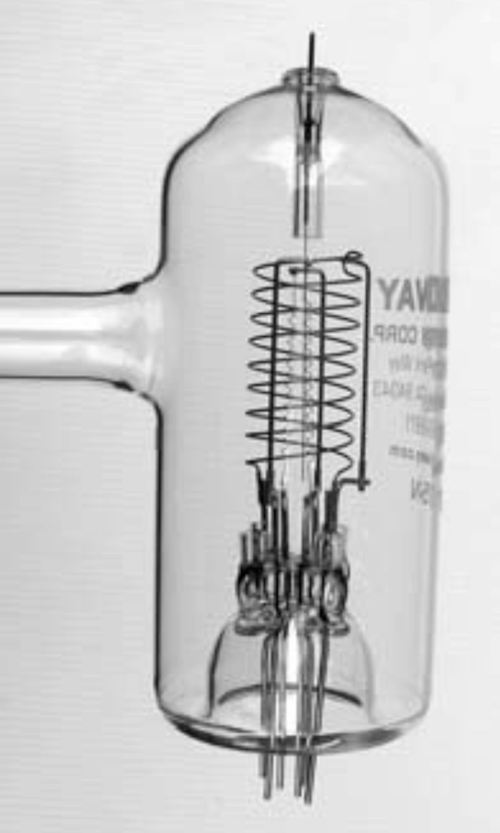

T-075-P Uncoated Glass Ion Gauge Tube, Tungsten Filament, 0.75" Diameter Pyrex Glass Port $189.00
Duniway part# Description Price Request Image

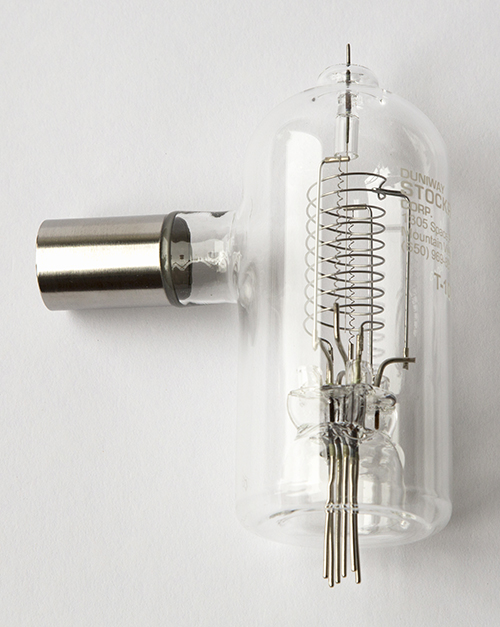

T-100-K Uncoated Glass Ion Gauge Tube,Tungsten Filament, 1.0" Diameter Kovar Port $234.00
Duniway part# Description Price Request Image
T-100-N Uncoated Glass Ion Gauge Tube, Tungsten Filament, 1.0" Diameter Schott Glass Port $189.00
Duniway part# Description Price Request Image

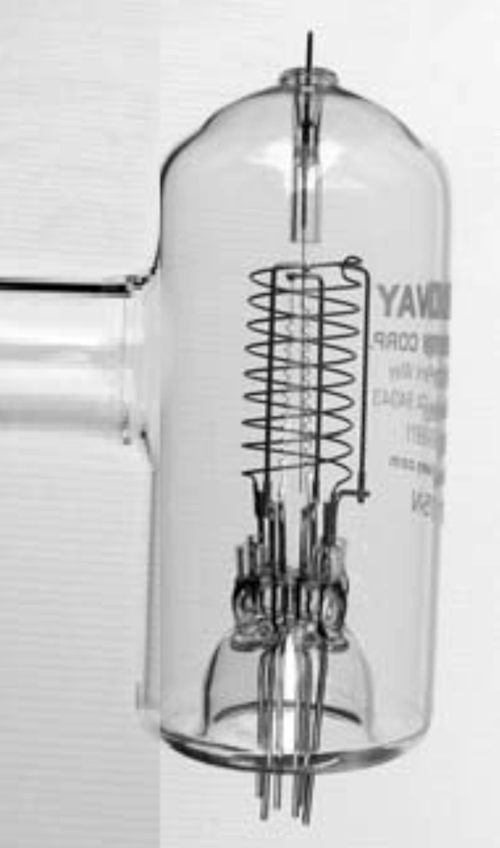

T-100-P Uncoated Glass Ion Gauge Tube, Tungsten Filament, 1.0" Diameter Pyrex Glass Port $189.00
Duniway part# Description Price Request Image

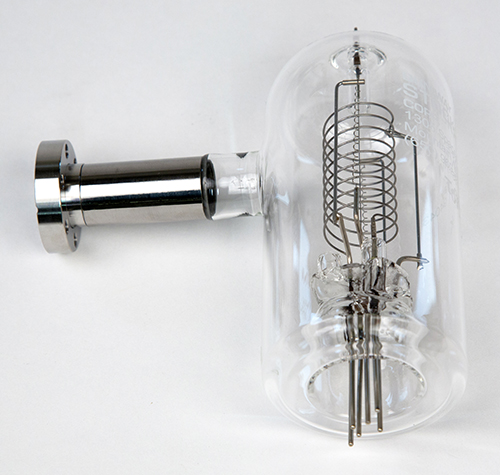

T-CFF-133 Uncoated Glass Ion Gauge Tube, Tungsten Filament, 1.33" CF Flanged Port $304.00
Duniway part# Description Price Request Image

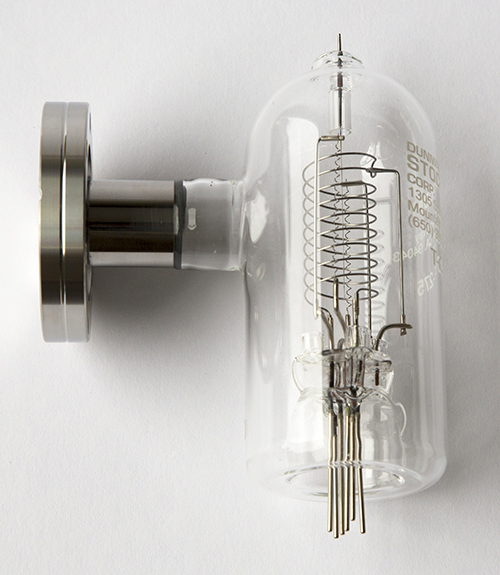

T-CFF-275 Uncoated Glass Ion Gauge Tube, Tungsten Filament, 2.75" CF Flanged Port $304.00
Duniway part# Description Price Request Image
T-KF25 Uncoated Glass Ion Gauge Tube, Tungsten Filament, KF25 Flanged Port $220.00
Duniway part# Description Price Request Image

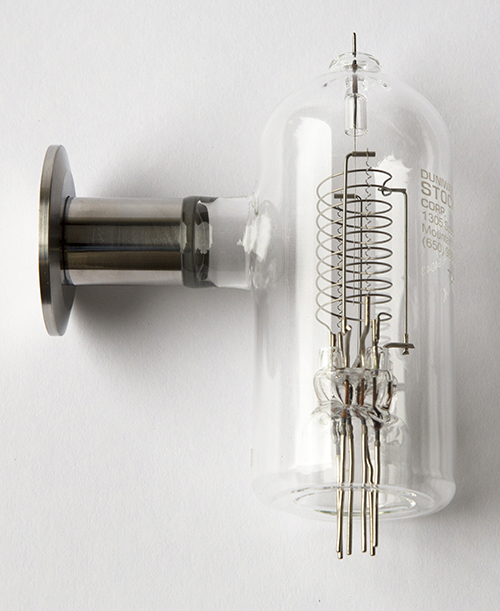

T-KF40 Uncoated Glass Ion Gauge Tube, Tungsten Filament, KF40 Flanged Port $220.00

Price Inquiry Form
