Note: For Gum Rubber Tubing marked with '**', sections longer than 8" need to be supported internally to prevent collapse under vacuum.
Gum Rubber and PVC Vacuum Hose
Supplies
| DUNIWAY PART # | Description | PRICE | REQUEST | Image |
|---|---|---|---|---|

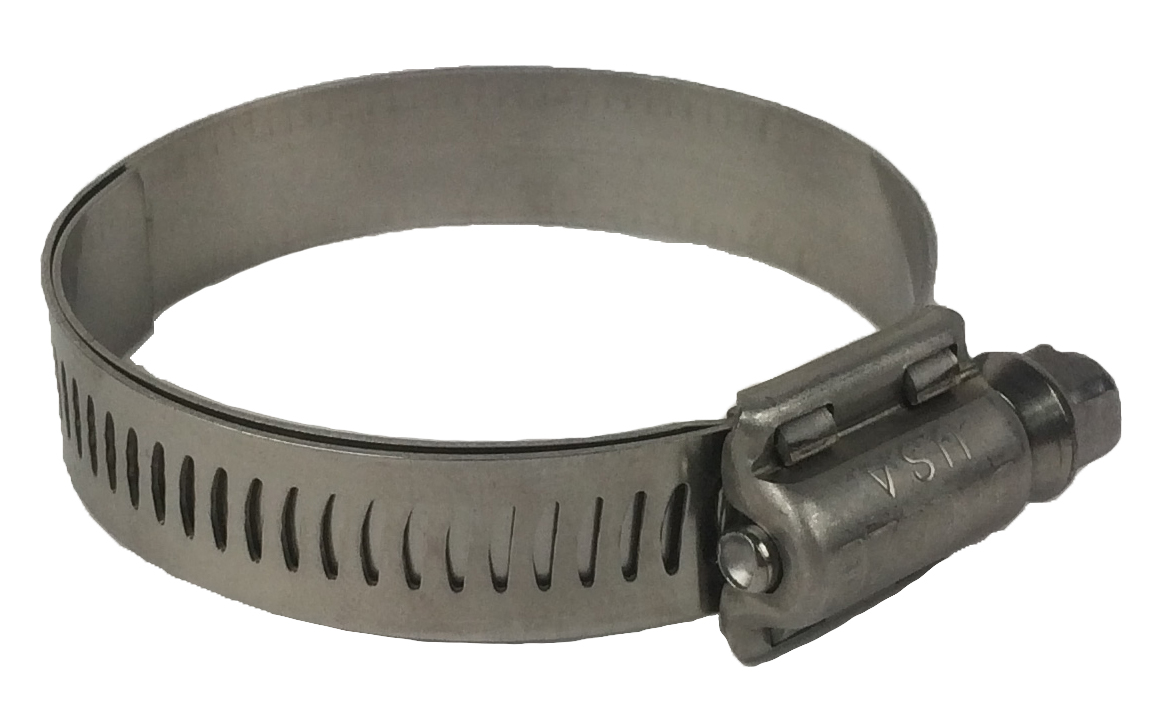

| CLP-063 | Tubing Clamp - #16 |
$3.50 |
 |
|
| CLP-075 | Tubing Clamp - #20 |
$3.50 |
||
| CLP-081 | Tubing Clamp - #24 |
$3.50 |
||
| CLP-100 | Tubing Clamp - #28 |
$3.75 |
||
| CLP-125 | Tubing Clamp - #32 |
$3.75 |
||
| CLP-150 | Tubing Clamp - #36 |
$3.75 |
||
| CLP-163 | Tubing Clamp - #44 |
$4.50 |
||
| CLP-200 | Tubing Clamp - #44 |
$4.50 |
| DUNIWAY PART # | Description | PRICE | REQUEST | Image |
|---|---|---|---|---|

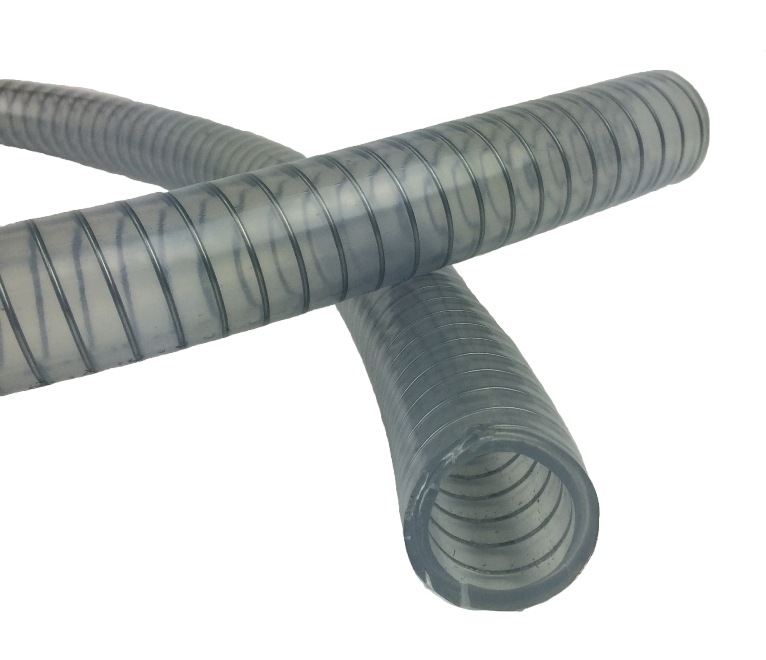

| PVC-063 | PVC Tubing - 5/8" ID, 0.906" OD, (Uses Clamp Size #16) - per foot |
$5.10 |
 |
|
| PVC-075 | PVC Tubing - 3/4" ID, 1.024" OD, (Uses Clamp Size #16) - per foot |
$6.30 |
||
| PVC-100 | PVC Tubing - 1" ID, 1.319" OD, (Uses Clamp Size #20) - per foot |
$7.50 |
||
| PVC-125 | PVC Tubing - 1 1/4 ID, 1.634" OD, (Uses Clamp Size #24) - per foot |
$10.31 |
||
| PVC-150 | PVC Tubing - 1 1/2" ID, 1.909" OD, (Uses Clamp Size #28) - per foot |
$14.06 |
||
| PVC-200 | PVC Tubing - 2" ID, 2.382" OD, (Uses Clamp Size #36) - per foot |
$17.81 |
| DUNIWAY PART # | Description | PRICE | REQUEST | Image |
|---|---|---|---|---|

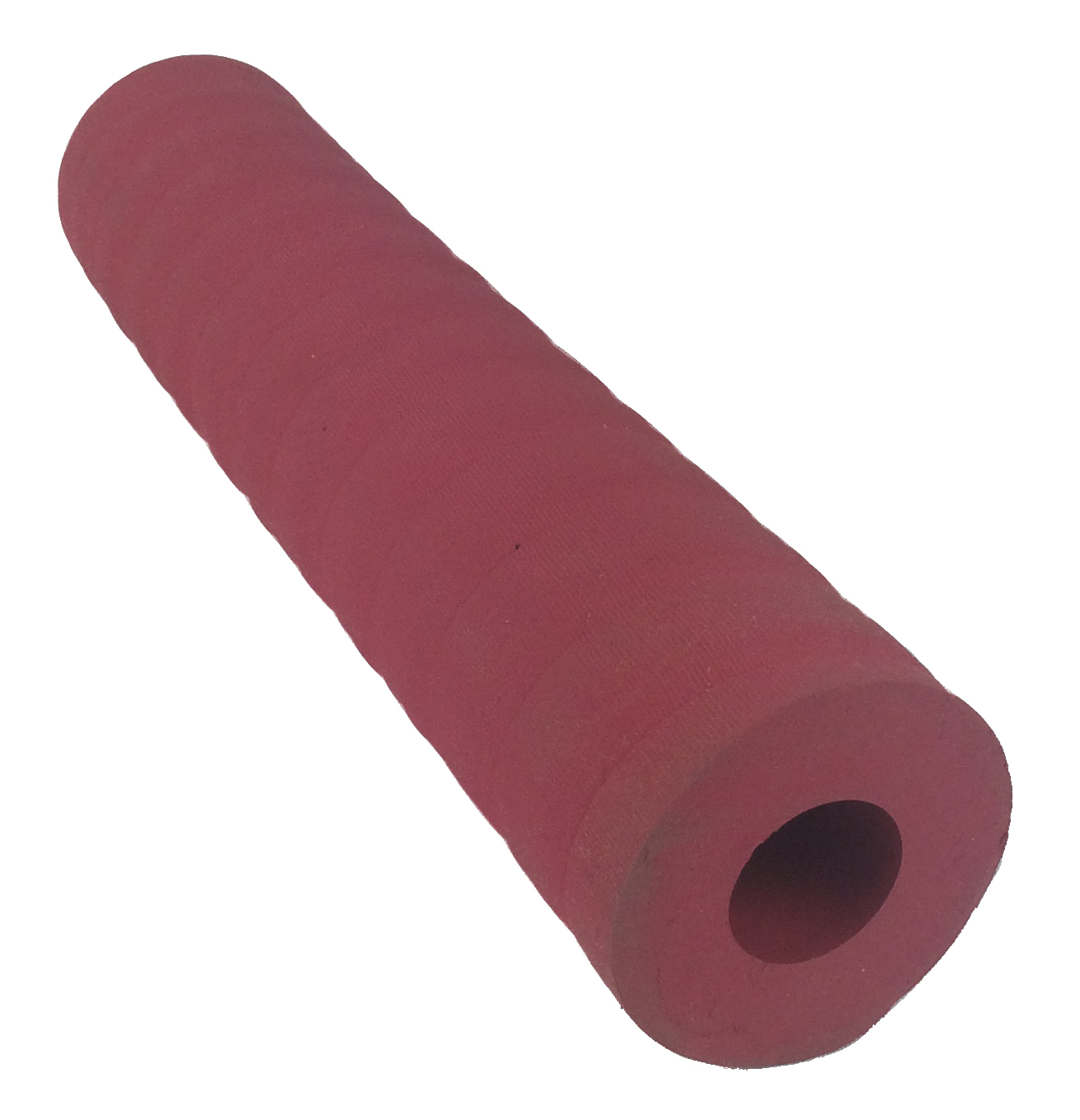

| VH-063 | Gum Rubber Tubing - 5/8" ID, 3/8" Wall, (Uses Clamp Size #16) - per foot |
$12.50 |
 |
|
| VH-075 | Gum Rubber Tubing - 3/4" ID, 7/16" Wall, (Uses Clamp Size #20) - per foot |
$17.50 |
||
| VH-081 | Gum Rubber Tubing - 13/16 ID, 3/8" Wall, (Uses Clamp Size #24) - per foot |
$18.25 |
||
| VH-100 | Gum Rubber Tubing - 1" ID, 5/8" Wall, (Uses Clamp Size #32) - per foot |
$29.50 |
||
| VH-125** | Gum Rubber Tubing -1 1/4" ID, 1/2" Wall, (Uses Clamp Size #32 - per foot |
$30.50 |
||
| VH-150** | Gum Rubber Tubing - 1 1/2" ID, 1/2" Wall, (Uses Clamp Size #36) - per foot |
$32.50 |
||
| VH-163 | Gum Rubber Tubing - 1 5/8" ID, 11/16" Wall, (Uses Clamp Size #44) - per foot |
$43.50 |
