Visi Traps®

VISI-TRAP®

The Visi-Trap® features a transparent sump which contains a filter element that traps foreign particles and vapors to protect the pump from corrosion and reduce oil backstreaming. Easily tailored to user requirements, two sizes, and a variety of filtration and termination (flanges) options are available.

Key Features

  • Can be mounted horizontally or vertically.
  • Protects vacuum pumps from foreign materials.
  • Transparent sump for visual monitoring.
  • Select filter elements for trapping particles, water, oil or corrosive chemicals.
  • Filter elements can be easily changed without breaking down the vacuum system.
Duniway part# Description Price Request Image

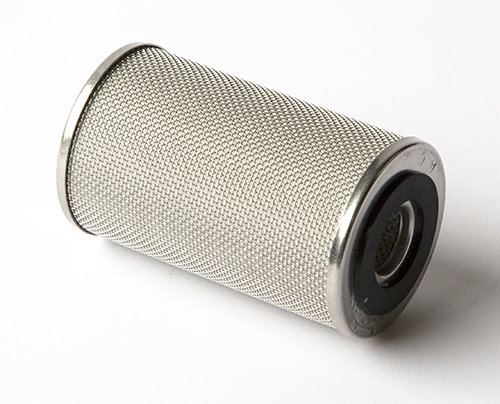

FE-AA Filter Element, POSI and VISI TRAP, Activated Alumina, 1/trap $42.00
Duniway part# Description Price Request Image

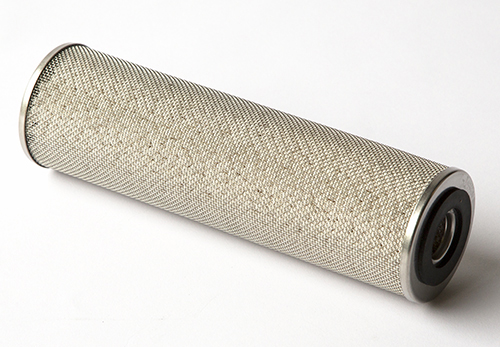

FE-AA-95 Filter Element, VISI TRAP, Activated Alumina, 1/trap $50.00
Duniway part# Description Price Request Image
FE-AC Filter Element,POSI and VISI TRAP, Activated Charcoal, 1/trap $38.00
Duniway part# Description Price Request Image
FE-AC-95 Filter Element, VISI TRAP, Activated Charcoal, 1/trap $50.00
Duniway part# Description Price Request Image

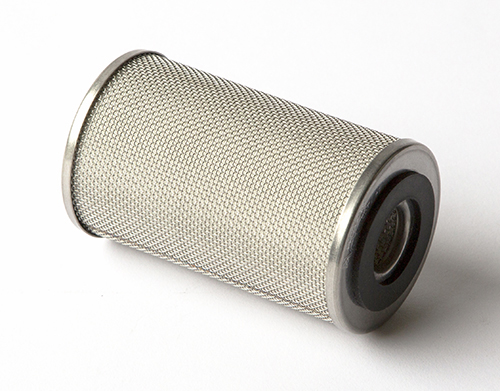

FE-CU Filter Element, POSI and VISI TRAP, Copper Gauze $42.00
FE-P2 Filter Element, POSI and VISI TRAP, PolyPro 2 $55.00
FE-P5 Filter Element, POSI and VISI TRAP, PolyPro 5 $40.00
FE-SD Filter Element, POSI and VISI TRAP, Sodasorb $38.00
FE-SS Filter Element, POSI and VISI TRAP, Stainless Steel Gauze $46.00
Duniway part# Description Price Request Image

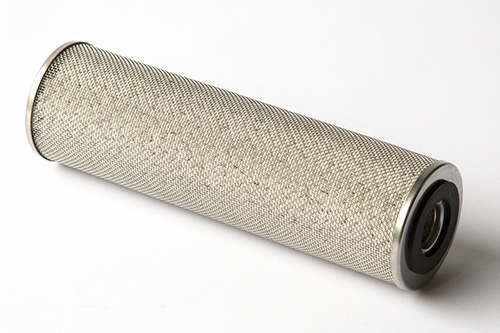

FE-SD-95 Filter Element, VISI-TRAP, Sodasorb, 1/trap $60.00
Duniway part# Description Price Request Image

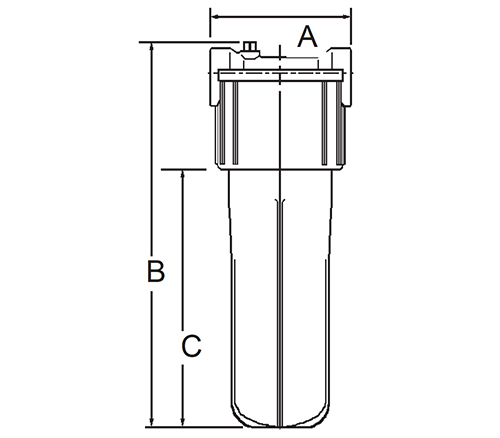

V-45A-25 VISI-TRAP, Straight In-Line, Activated Alumina Element, NW25 Flanges, A (Body OD): 5.5", B (Total Ht): 9.25", C (Body Ht): 4.5", Port OD: 0.75"
V-45C-25 VISI-TRAP, Straight In-Line, Activated Charcoal Element, NW25 Flanges, A (Body OD): 5.5", B (Total Ht): 9.25", C (Body Ht):4.5", Port OD: 0.75"
V-45S-25 VISI-TRAP, Straight In-Line, Sodasorb Element, NW25 Flanges, A (Body OD): 5.5", B (Total Ht): 9.25", C (Body Ht): 4.5", Port OD: 0.75"
V-95A-25 VISI-TRAP, Straight In-Line, Activated Alumina Element, NW25 Flanges, A (Body OD): 5.5", B (Total Ht.): 14.12", C (Body Ht.): 9.5", Port OD: 0.75" $300.00
V-95C-25 VISI-TRAP, Straight In-Line, Activated Charcoal Element, NW25 Flanges, A (Body OD): 5.5", B (Total Ht.): 14.12", C (Body Ht.): 9.5", Port OD: 0.75" $300.00
V-95S-25 VISI-TRAP, Straight In-Line, Sodasorb Element, NW25 Flanges,A (Body OD): 5.5",B (Total Ht.): 14.12",C (Body Ht.): 9.5", Port OD: 0.75" $300.00
