Posi Traps®

POSI-TRAP®

Posi-Trap vacuum inlet trap filter elements are sealed at both the inlet and exhaust to provide positive trapping of the effluent gas stream and eliminate “blow-by.” Forcing all particulates to pass through the filter medium, the Posi-Trap comes in a 4” (25 mm ports) model which uses one user selectable filter element and an 8” (40 mm ports) model that holds four filter elements. Made from stainless steel in straight-thru and right-angle styles, they are equipped with a quick-release clamp for easily changing the filter elements.

Key Features

  • Ensures positive flow with no “blow-by.”
  • All stainless steel construction.
  • Straight-thru and right angle styles offered.
  • Wide variety of filter elements to choose from:
  1. Sodasorb® filter elements are used for trapping acids.
  2. Copper Gauze filter elements have a large surface area to trap condensable particles and oil vapors.
  3. Stainless Steel gauze filter elements are the same as copper but with added corrosion protection.
  4. PolyPro 2 filter elements trap high volumes of solids and particulates as small as 2 microns.
  5. PolyPro 5 filter elements trap high volumes of solids and particulates as small as 5 microns.
  6. Activated Charcoal filter elements remove organic vapors.
DUNIWAY PART # Description PRICE REQUEST Image
FE-AA Filter Element, POSI and VISI TRAP, Activated Alumina, 1/trap
$40.00
DUNIWAY PART # Description PRICE REQUEST Image
FE-AC Filter Element,POSI and VISI TRAP, Activated Charcoal, 1/trap
$38.00
DUNIWAY PART # Description PRICE REQUEST Image
FE-CU Filter Element, POSI and VISI TRAP, Copper Gauze
$42.00
FE-P2 Filter Element, POSI and VISI TRAP, PolyPro 2
$40.00
FE-P5 Filter Element, POSI and VISI TRAP, PolyPro 5
$40.00
FE-SD Filter Element, POSI and VISI TRAP, Sodasorb
$38.00
FE-SS Filter Element, POSI and VISI TRAP, Stainless Steel Gauze
$46.00
DUNIWAY PART # Description PRICE REQUEST Image

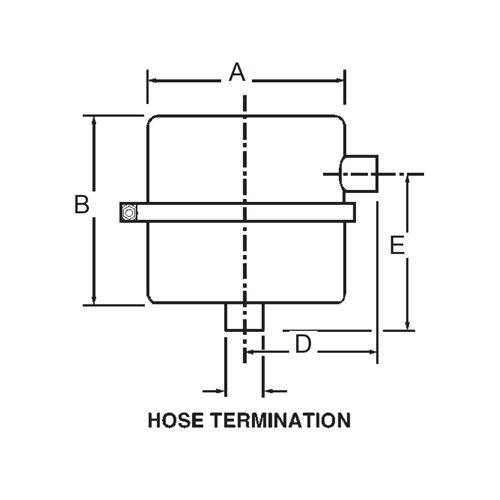

P-4RA-25-AC POSI TRAP, Right Angle, Activated Charcoal Element, NW25 Flanges, A (Body OD): 4.0", B (Body Ht.): 5.7", D : 3.5", E: 5.8", Port OD: 1.0"
$370.00
P-4RA-25-CU POSI TRAP, Right Angle, Copper Gauze Element, NW25 Flanges, A (Body OD): 4.0", B (Body Ht.): 5.7", D : 3.5", E: 5.8", Port OD: 1.0"
$370.00
P-4RA-25-P2 POSI TRAP, Right Angle, PolyPro 2 Element, NW25 Flanges, A (Body OD): 4.0", B (Body Ht.): 5.7", D : 3.5", E: 5.8", Port OD: 1.0"
$370.00
P-4RA-25-P5 POSI TRAP, Right Angle, PolyPro 5 Element, NW25 Flanges, A (Body OD): 4.0", B (Body Ht.): 5.7", D : 3.5", E: 5.8", Port OD: 1.0"
$370.00
P-4RA-25-SD POSI TRAP, Right Angle, Sodasorb Element, NW25 Flanges, A (Body OD): 4.0", B (Body Ht.): 5.7", D : 3.5", E: 5.8", Port OD: 1.0"
$370.00
P-4RA-25-SS POSI TRAP, Right Angle, Stainless Steel Gauze Element, NW25 Flanges, A (Body OD): 4.0", B (Body Ht.): 5.7", D : 3.5", E: 5.8", Port OD: 1.0"
$370.00
P-4RA-40-AC POSI TRAP, Right Angle, Activated Charcoal Element, NW40 Flanges, A (Body OD): 4.0", B (Body Ht.): 5.7", D : 3.5", E: 5.8", Port OD: 1.5"
$425.00
P-4RA-40-CU POSI TRAP, Right Angle, Copper Gauze Element, NW40 Flanges, A (Body OD): 4.0", B (Body Ht.): 5.7", D : 3.5", E: 5.8", Port OD: 1.5"
$425.00
P-4RA-40-P2 POSI TRAP, Right Angle, PolyPro 2 Element, NW40 Flanges, A (Body OD): 4.0", B (Body Ht.): 5.7", D : 3.5", E: 5.8", Port OD: 1.5"
$425.00
P-4RA-40-P5 POSI TRAP, Right Angle, PolyPro 5 Element, NW40 Flanges, A (Body OD): 4.0", B (Body Ht.): 5.7", D : 3.5", E: 5.8", Port OD: 1.5"
$425.00
P-4RA-40-SD POSI TRAP, Right Angle, Sodasorb Element, NW40 Flanges, A (Body OD): 4.0", B (Body Ht.): 5.7", D : 3.5", E: 5.8", Port OD: 1.5"
$425.00
P-4RA-40-SS POSI TRAP, Right Angle, Stainless Steel Gauze Element, NW40 Flanges, A (Body OD): 4.0", B (Body Ht.): 5.7", D : 3.5", E: 5.8", Port OD: 1.5"
$425.00
P-8RA-40-SD POSI TRAP, Right Angle, Sodasorb Element, NW40 Flanges, A (Body OD): 8.0", B (Body Ht.): 7.6", D : 5.5", E: 8.4", Port OD: 1.5"
$835.00
P-8RA-40-SS POSI TRAP, Right Angle, Stainless Steel Gauze Element, NW40 Flanges, A (Body OD): 8.0", B (Body Ht.): 7.6", D : 5.5", E: 8.4", Port OD: 1.5"
$835.00
P-8RA-50-SD POSI TRAP, Right Angle, Sodasorb Element, NW50 Flanges, A (Body OD): 8.0", B (Body Ht.): 7.6", D : 5.5", E: 8.4", Port OD: 1.5"
$870.00
P-8RA-50-SS POSI TRAP, Right Angle, Stainless Steel Gauze Element, NW50 Flanges, A (Body OD): 8.0", B (Body Ht.): 7.6", D : 5.5", E: 8.4", Port OD: 1.5"
$870.00
DUNIWAY PART # Description PRICE REQUEST Image

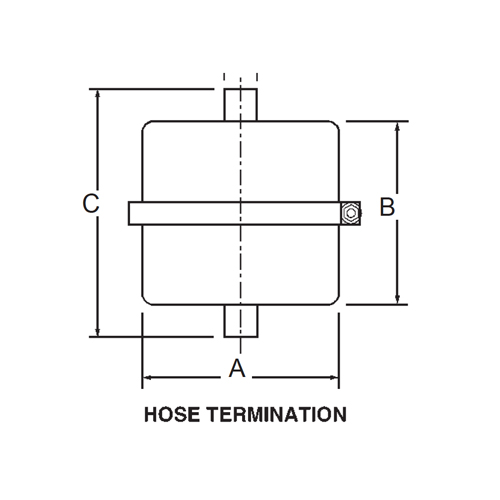

P-4ST-25-AC POSI TRAP, Straight Through, Activated Charcoal Element, NW25 flanges, A (Body OD): 4.0", B(Body Ht.): 5.7", C(Total Ht.): 8.0", Port OD: 1
$360.00
P-4ST-25-CU POSI TRAP, Straight Through, Copper Gauze Element, NW25 flanges, A (Body OD): 4.0", B(Body Ht.): 5.7", C(Total Ht.): 8.0", Port OD: 1.0"
$360.00
P-4ST-25-P2 POSI TRAP, Straight Through, PolyPro 2 Element, NW25 flanges, A (Body OD): 4.0", B(Body Ht.): 5.7", C(Total Ht.): 8.0", Port OD: 1.0"
$360.00
P-4ST-25-P5 POSI TRAP, Straight Through, PolyPro 5 Element, NW25 flanges, A (Body OD): 4.0", B(Body Ht.): 5.7", C(Total Ht.): 8.0", Port OD: 1.0"
$360.00
P-4ST-25-SD POSI TRAP, Straight Through, Sodasorb Element, NW25 Flanges,A (Body OD): 4.0", B (Body Ht.): 5.7", C (Total Ht.): 8.0", Port OD: 1.0"
$360.00
P-4ST-25-SS POSI TRAP, Straight Through, Stainless Steel Gauze Element, NW25 flanges, A (Body OD): 4.0", B(Body Ht.): 5.7", C(Total Ht.): 8.0", Port OD: 1
$360.00
P-4ST-40-AC POSI TRAP, Straight Through, Activated Charcoal Element, NW40 flanges, A (Body OD): 4.0", B(Body Ht.): 5.7", C(Total Ht.): 8.0", Port OD: 1.5"
$425.00
P-4ST-40-CU POSI TRAP, Straight Through, Copper Gauze Element, NW40 flanges, A (Body OD): 4.0", B(Body Ht.): 5.7", C(Total Ht.): 8.0", Port OD: 1.5"
$425.00
P-4ST-40-P2 POSI TRAP, Straight Through, PolyPro 2 Element, NW40 flanges, A (Body OD): 4.0", B(Body Ht.): 5.7", C(Total Ht.): 8.0", Port OD: 1.5"
$425.00
P-4ST-40-P5 POSI TRAP, Straight Through, PolyPro 5 Element, NW40 flanges, A (Body OD): 4.0", B(Body Ht.): 5.7", C(Total Ht.): 8.0", Port OD: 1.5"
$425.00
P-4ST-40-SD POSI TRAP, Straight Through, Sodasorb Element, NW40 flanges, A (Body OD): 4.0", B(Body Ht.): 5.7", C(Total Ht.): 8.0", Port OD: 1.5"
$425.00
P-4ST-40-SS POSI TRAP, Straight Through, Stainless Steel Gauze Element, NW40 flanges, A (Body OD): 4.0", B(Body Ht.): 5.7", C(Total Ht.): 8.0", Port OD: 1.5"
$425.00
P-8ST-40-CU POSI TRAP, Straight Through, Copper Gauze Element, NW40 Flanges, A (Body OD): 8.0", B (Body Ht.): 7.6", C (Total Ht.): 11.0", Port OD: 1.5"
$820.00
P-8ST-40-SD POSI TRAP, Straight Through, Sodasorb Element, NW40 Flanges, A (Body OD): 8.0", B (Body Ht.): 7.6", C (Total Ht.): 11.0", Port OD: 1.5"
$820.00
P-8ST-40-SS POSI TRAP, Straight Through, Stainless Steel Gauze Element, NW40 Flanges, A (Body OD): 8.0", B (Body Ht.): 7.6", C (Total Ht.): 11.0", Port OD: 1.5"
$820.00
P-8ST-50-SD POSI TRAP, Straight Through, Sodasorb Element, NW50 Flanges, A (Body OD): 8.0", B (Body Ht.): 7.6", C (Total Ht.): 11.0", Port OD: 1.5"
$840.00
P-8ST-50-SS POSI TRAP, Straight Through, Stainless Steel Gauze Element, NW50 Flanges, A (Body OD): 8.0", B (Body Ht.): 7.6", C (Total Ht.): 11.0", Port OD: 1.5"
$840.00
