FLEX TRAPS

Our flex traps are provided with fibrous stainless steel sieve for removal of hydrocarbons which backstream toward the chamber when the mechanical pump oil is at its vapor pressure.

Copper sieve is also available as an option by adding the suffix “-CS” to the model number at no additional cost. The flex trap’s two-piece clamped body design makes disassembly, cleaning and replacement of the sieve a simple task.

Coaxial and right angle port configurations are available with 2, 4, 6, 8 and 12 inch OD bodies with port ODs from 1/2 to 8 inches with or without NW, ISO, CF or ASA flanges.

Don't see the trap size you need? Make sure to check out our offering of Metal Mesh Flex Traps on sale on our Specials page while supplies last!

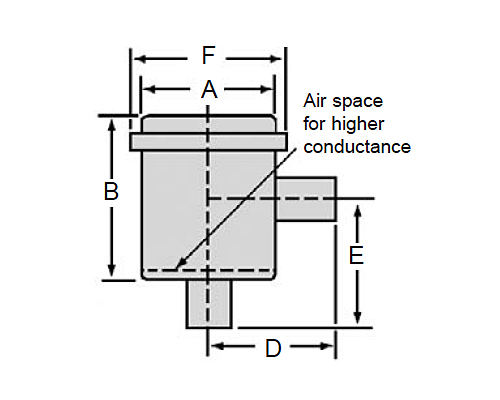

DUNIWAY PART # Description PRICE REQUEST Image
AFT-050-2 FLEX TRAP, Right-Angle, Hose Port, A (Body OD): 2.0", B (Body Ht.): 5.25", D: 2.5", E: 5.31", F (Rim OD): 3.56", Port OD: 0.5"
$345.00
AFT-100-4 FLEX TRAP, Right-Angle, Hose Port, A (Body OD): 4.0", B (Body Ht.): 7.0", D: 3.5", E: 6.41", F (Rim OD): 4.8", Port OD: 1.0"
$355.00
AFT-150-6 FLEX TRAP, Right-Angle, Hose Port, A (Body OD): 6.0", B (Body Ht.): 7.0", D: 4.5", E: 5.0", F (Rim OD): 6.9", Port OD: 1.5"
$690.00
AFT-NW16-2 FLEX TRAP, Right-Angle, NW16 Flanges, A (Body OD): 2.0", B (Body Ht.): 5.25", D: 2.5", E: 5.19", F (Rim OD): 3.56", Port OD: 0.75"
$345.00
AFT-NW25-2 FLEX TRAP, Right-Angle, NW25 Flanges, A (Body OD): 2.0", B (Body Ht.): 5.25", D: 2.5", E: 5.06", F (Rim OD): 3.56", Port OD: 1.0" (Limited quantity at this price). Discontinued
$355.00
AFT-NW25-4 FLEX TRAP, Right-Angle, NW25 Flanges, A (Body OD): 4.0", B (Body Ht.): 7.0", D: 3.5", E: 6.41", F (Rim OD): 4.8", Port OD: 1.0"
$495.00
AFT-NW40-4 FLEX TRAP, Right-Angle, NW40 Flanges, A (Body OD): 4.0", B (Body Ht.):7.0", D: 3.5", E: 6.15", F (Rim OD): 4.8", Port OD: 1.5"
$505.00
AFT-NW40-6 FLEX TRAP, Right-Angle, NW40 Flanges, A (Body OD): 6.0", B (Body Ht.): 7.0", D: 4.5", E: 5.0", F (Rim OD): 6.9", Port OD: 1.5" (Limited quantity at this price)
$690.00
AFT-NW50-6 FLEX TRAP, Right-Angle, NW50 Flanges, A (Body OD): 6.0", B (Body Ht.): 7.0", D: 4.5", E: 4.75", F (Rim OD):6.9", Port OD: 2.0"
$730.00

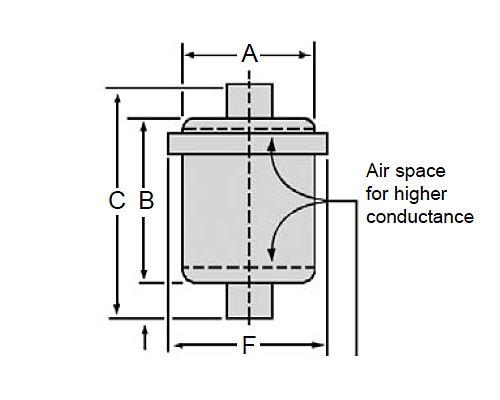

DUNIWAY PART # Description PRICE REQUEST Image
CFT-100-4 FLEX TRAP, Coaxial, Hose Port, A (Body OD): 4.0", B (Body Ht.): 7.0", C (Total Ht.): 10.0", F (Rim OD): 4.8", Port OD: 1.0"
$495.00
CFT-150-6 FLEX TRAP, Coaxial, Hose Port, A (Body OD): 6.0", B (Body Ht.): 7.0", C (Total Ht.): 10.0", F (Rim OD): 6.9", Port OD: 1.5"
$690.00
CFT-200-6 FLEX TRAP, Coaxial, Hose Port, A (Body OD): 6.0", B (Body Ht.): 7.0", C (Total Ht.): 10.0", F (Rim OD): 6.98", Port OD: 2.0"
$730.00
CFT-NW25-4 FLEX TRAP, Coaxial, NW25B Flanges, A (Body OD): 4.0", B (Body Ht.): 7.0", C (Total Ht.): 10.0", F (Rim OD): 4.8", Port OD: 1.0"
$495.00
CFT-NW40-4 FLEX TRAP, Coaxial, NW40B Flanges, A (Body OD): 4.0", B (Body Ht.): 7.0", C (Total Ht.): 10.0", F (Rim OD): 4.8", Port OD: 1.5"
$505.00
CFT-NW40-6 FLEX TRAP, Coaxial, NW40B Flanges, A (Body OD): 6.0", B (Body Ht.): 7.0", C (Total Ht.): 10.0", F (Rim OD): 6.9", Port OD: 1.5" (Limited quantity at this price)
$690.00
CFT-NW50-6 FLEX TRAP, Coaxial, NW50B Flanges, A (Body OD): 6.0", B (Body Ht.): 7.0", C (Total Ht.): 10.0", F (Rim OD): 6.9", Port OD: 2.0"
$730.00
DUNIWAY PART # Description PRICE REQUEST Image

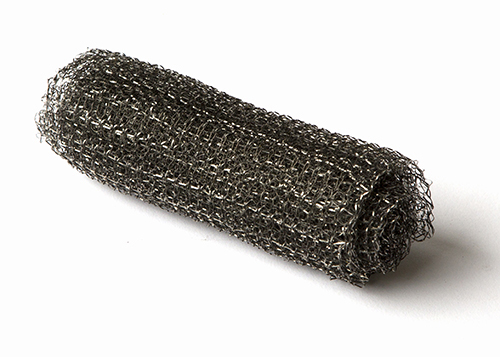

FT-2-SS Replacement Filter Element, FLEX TRAP, Stainless Steel Mesh, for A (Body OD): 2.0"
$29.00
DUNIWAY PART # Description PRICE REQUEST Image
FT-4-SS Replacement Filter Element, FLEX TRAP, Stainless Steel Mesh, for A (Body OD): 4.0"
$37.00
DUNIWAY PART # Description PRICE REQUEST Image

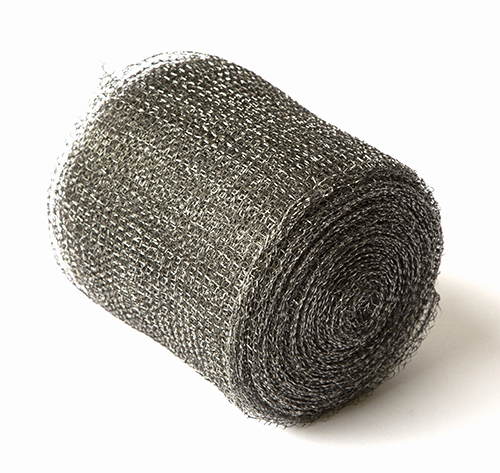

FT-6-SS Replacement Filter Element, FLEX TRAP, Stainless Steel Mesh, for A (Body OD): 6.0"
$72.00
