New Perkin Elmer Style Pumps with Magnets

New Ion Pump Build Process

  1. Acquire New Parts to Specifications
  2. Clean Parts for Surface Contamination
  3. Bake Ceramic Parts
  4. Vacuum Degas all Metal Element Parts
  5. Heli-Arc Weld Body and Feedthrough
  6. Leak Check Welded Body
  7. Assemble Elements
  8. Install the Elements in the Clean Body
  9. Leak Check
  10. Bake-Out on Vacuum Manifold
  11. Check for leakage current
  12. Pinch off Seal
  13. Clean Exterior
  14. Check for Leakage Current

Read about our Galaxy® cathode design which provides stable pumping speed for air without sacrificing overall pumping speed.

Duniway part# Description Price Request Image
PE-11DI New PE-Style Differential/Noble Diode Ion Pump, 11 l/s, 2.75" CFF w/Magnet

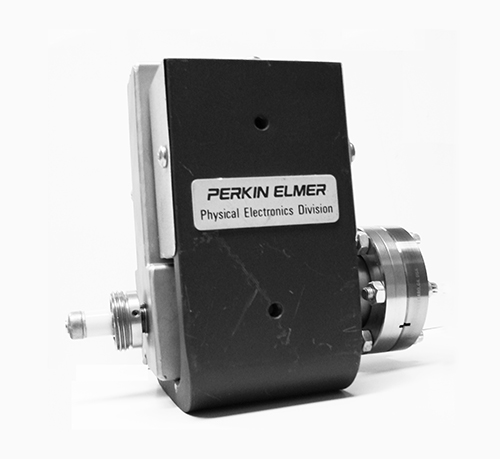

PE-11STD New PE-Style Standard Diode Ion Pump, 11 l/s, 2.75" CFF w/Magnet
Duniway part# Description Price Request Image
PE-20DI New PE-Style Differential/Noble Diode Ion Pump, 20 l/s, 2.75" CFF w/Magnet
PE-20GXY New PE-Style Galaxy Diode Ion Pump, 20 l/s, 2.75" CFF w/Magnet

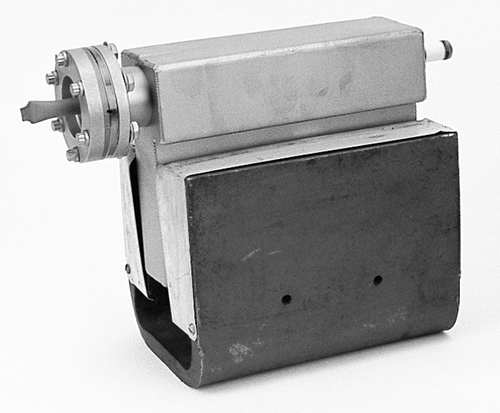

PE-20STD New PE-Style Standard Diode Ion Pump, 20 l/s, 2.75" CFF w/Magnet
Duniway part# Description Price Request Image
PE-25DI New PE-Style Differential/Noble Diode Ion Pump, 25 l/s, 3.375" CFF w/Magnet
PE-25GXY New PE-Style Galaxy Diode Ion PUmp, 25 l/s, 3.375" CFF w/Magnet $1,850.00

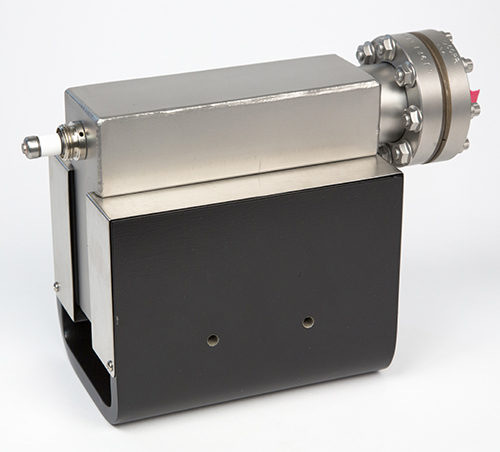

PE-25STD New PE Style Standard Diode Ion Pump, 25 l/s, 3.375" CFF w/Magnet $1,850.00
