Material is 304SST.
Zero Length Adapter Flanges and Double Sided Flanges
| DUNIWAY PART # | Description | PRICE | REQUEST | Image |
|---|---|---|---|---|

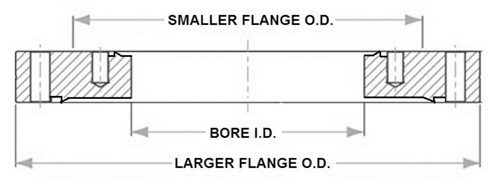

| A0218TX133T | CF Adapter Flange, 2.125" OD to 1.33", 0.62" ID |
$68.00 |
 |
|
| A0275TX218T | CF Adapter Flange, 2.75" OD to 2.125", 1.00" ID |
$68.00 |
||
| A0275X133T | CF Adapter Flange, 2.75" OD to 1.33", 0.62" ID |
$68.00 |
||
| A0338TX218T | CF Adapter Flange, 3.375" OD to 2.125", 1.00" ID |
$80.00 |
||
| A0338TX275T | CF Adapter Flange, 3.375" OD to 2.75", 1.50" ID |
$84.00 |
||
| A0338X133T | CF Adapter Flange, 3.375" OD to 1.33", 0.62" ID |
$80.00 |
||
| A0450TX338T | CF Adapter Flange, 4.50" OD to 3.375", 2.00" ID |
$115.00 |
||
| A0450X133T | CF Adapter Flange, 4.50" OD to 1.33", 0.62" ID |
$89.00 |
||
| A0450X218T | CF Adapter Flange, 4.50" OD to 2.125", 1.00" ID |
$92.00 |
||
| A0450X275T | CF Adapter Flange, 4.50" OD to 2.75", 1.50" ID |
$102.00 |
||
| A0458X133T | CF Adapter Flange, 4.625" OD to 1.33", 0.62" ID |
$115.00 |
||
| A0458X218T | CF Adapter Flange, 4.625" OD to 2.125", 1.00" ID |
$110.00 |
||
| A0458X275T | CF Adapter Flange, 4.625" OD to 2.75", 1.50" ID |
$115.00 |
||
| A0458X338T | CF Adapter Flange, 4.625" OD to 3.375", 2.00" ID |
$115.00 |
||
| A0600TX458T | CF Adapter Flange, 6.00" OD to 4.625", 3.00" ID |
$165.00 |
||
| A0600X133T | CF Adapter Flange, 6.00" OD to 1.33", 0.62" ID |
$125.00 |
||
| A0600X218T | CF Adapter Flange, 6.00" OD to 2.125", 1.00" ID |
$118.00 |
||
| A0600X275T | CF Adapter Flange, 6.00" OD to 2.75", 1.50" ID |
$125.00 |
||
| A0600X338T | CF Adapter Flange, 6.00" OD to 3.375", 2.00" ID |
$147.00 |
||
| A0600X450T | CF Adapter Flange, 6.00" OD to 4.50", 2.50" ID |
$168.00 |
||
| A0675TX600T | CF Adapter Flange, 6.75" OD to 6.00", 4.00" ID |
$185.00 |
||
| A0675X133T | CF Adapter Flange, 6.75" OD to 1.33", 0.62" ID |
$150.00 |
||
| A0675X218T | CF Adapter Flange, 6.75" OD to 2.125", 1.00" ID |
$150.00 |
||
| A0675X275T | CF Adapter Flange, 6.75" OD to 2.75", 1.50" ID |
$158.00 |
||
| A0675X338T | CF Adapter Flange, 6.75" OD to 3.375", 2.00" ID |
$170.00 |
||
| A0675X450T | CF Adapter Flange, 6.75" OD to 4.50", 2.50" ID |
$170.00 |
||
| A0800X133T | CF Adapter Flange, 8.00" OD to 1.33", 0.62" ID |
$177.00 |
||
| A0800X218T | CF Adapter Flange, 8.00" OD to 2.125", 1.00" ID |
$177.00 |
||
| A0800X275T | CF Adapter Flange, 8.00" OD to 2.75", 1.50" ID |
$186.00 |
||
| A0800X338T | CF Adapter Flange, 8.00" OD to 3.375", 2.00" ID |
$177.00 |
||
| A0800X450T | CF Adapter Flange, 8.00" OD to 4.50", 2.50" ID |
$186.00 |
||
| A0800X458T | CF Adapter Flange, 8.00" OD to 4.625", 3.00" ID |
$177.00 |
||
| A0800X600T | CF Adapter Flange, 8.00" OD to 6.00", 4.00" ID |
$186.00 |
||
| A1000X133T | CF Adapter Flange, 10.00" OD to 1.33" ,0.62" ID |
$275.00 |
||
| A1000X218T | CF Adapter Flange, 10.00" OD to 2.125", 1.00" ID |
$275.00 |
||
| A1000X275T | CF Adapter Flange, 10.00" OD to 2.75", 1.50" ID |
$289.00 |
||
| A1000X338T | CF Adapter Flange, 10.00" OD to 3.375", 2.00" ID |
$275.00 |
||
| A1000X450T | CF Adapter Flange, 10.00" OD to 4.50", 2.50" ID |
$300.00 |
||
| A1000X600T | CF Adapter Flange, 10.00" OD to 6.00", 4.00" ID |
$315.00 |
||
| A1000X800T | CF Adapter Flange, 10.00" OD to 8.00", 6.00" ID |
$300.00 |
| DUNIWAY PART # | Description | PRICE | REQUEST | Image |
|---|---|---|---|---|

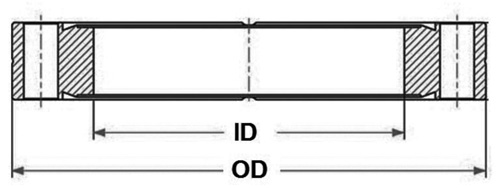

| FD-133075 | CF Double Sided Flange, 1.33"OD, 0.75" ID |
$25.00 |
 |
|
| FD-275000 | CF Double Sided Flange, 2.75"OD ,Blank |
$42.00 |
||
| FD-275150 | CF Double Sided Flange, 2.75"OD, 1.50" ID, 0.50" thick |
$42.00 |
||
| FD-275150-S | CF Double Sided Flange, 2.75"OD, 1.50" ID, 0.75" thick |
$66.00 |
||
| FD-338200 | CF Double Sided Flange, 3.375"OD, 2.00" ID |
$98.00 |
||
| FD-450000 | CF Double Sided Flange, 4.50"OD, Blank |
$95.00 |
||
| FD-450150 | CF Double Sided Flange, 4.50"OD, 1.50" ID |
$95.00 |
||
| FD-450250 | CF Double Sided Flange, 4.50"OD, 2.50" ID |
$95.00 |
||
| FD-600000 | CF Double Sided Flange, 6.00"OD, Blank |
$220.00 |
||
| FD-800600 | CF Double Sided Flange, 8.00"OD, 6.00" ID |
$260.00 |
| DUNIWAY PART # | Description | PRICE | REQUEST | Image |
|---|---|---|---|---|

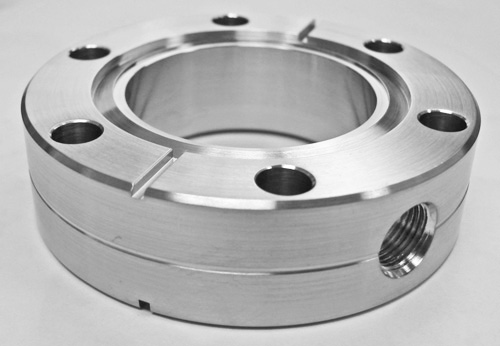

| FD-275150-1H | CF Double Sided Flange, 2.75" OD, 1.50" ID, One 1/8" NPT Port |
$85.00 |
 |
| DUNIWAY PART # | Description | PRICE | REQUEST | Image |
|---|---|---|---|---|

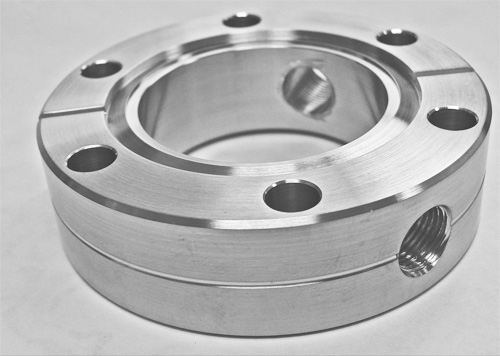

| FD-275150-2H | CF Double Sided Flange, 2.75" OD, 1.50" ID, Two 1/8" NPT Ports @ 90 |
$110.00 |
 |
