ISO Large Flanges

Overview

  • Flanges and Bolts are 304 Stainless Steel
  • Claw-Clamps are Aluminum
ISO Large Flanges

Dimensions

NW63 Tube OD: 2.50", Clamp Flange OD: 95mm/3.74", Bolted Flange OD: 130mm/5.12"
NW100 Tube OD: 4.00", Clamp Flange OD: 130mm/5.12", Bolted Flange OD: 165mm/6.50"
NW160 Tube OD: 6.00", Clamp Flange OD: 180mm/7.09", Bolted Flange OD: 225mm/8.86"
NW200 Tube OD: 8.00", Clamp Flange OD: 240mm/9.45", Bolted Flange OD: 285mm/11.22"
Duniway part# Description Price Request Image
LF063-250 NW63 Short Weld Flange $53.00
LF100-400 NW100 Short Weld Flange $72.00
LF100-400-316 NW100 Short Weld flange - Stainless Steel 316 $90.00

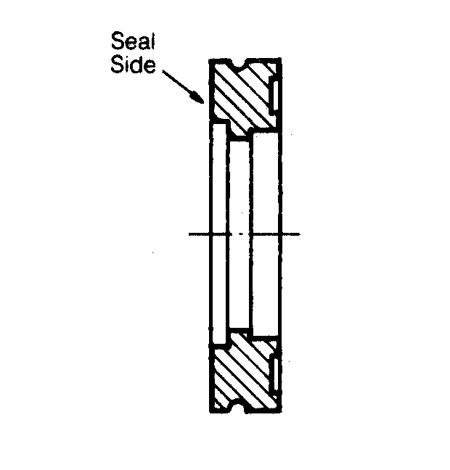

LF160-600 NW160 Short Weld Flange
LF200-800 NW200 Short Weld Flange
Duniway part# Description Price Request Image

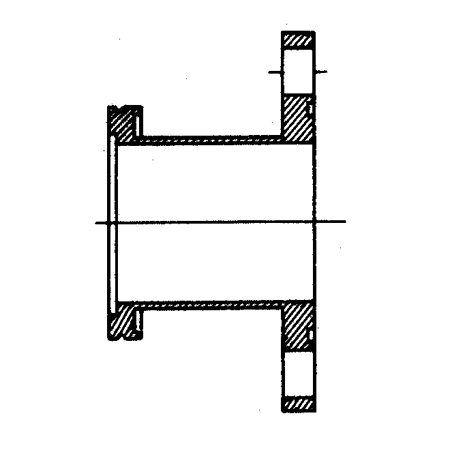

LF063-ASA200 NW63 to ASA200 Flange, w/o Groove
LF100-ASA200 NW100 to ASA200 Flange, w/o Groove
LF160-ASA400 NW160 to ASA400 Flange, w/o Groove
LF200-ASA600 NW200 to ASA600 Flange, w/o Groove
Duniway part# Description Price Request Image

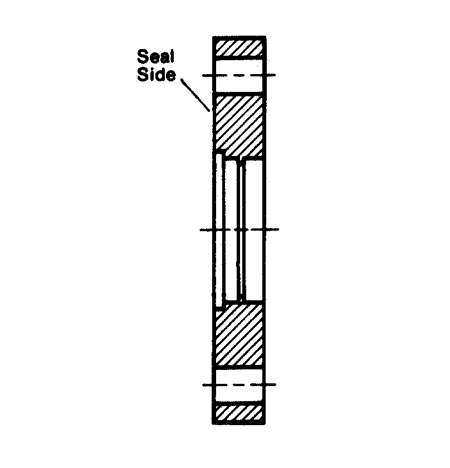

LF063-B250 NW63 Weld Flange, Bolted
LF100-B400 NW100 Weld Flange, Bolted
LF160-B600 NW160 Weld Flange, Bolted
LF200-B800 NW200 Weld Flange, Bolted
Duniway part# Description Price Request Image

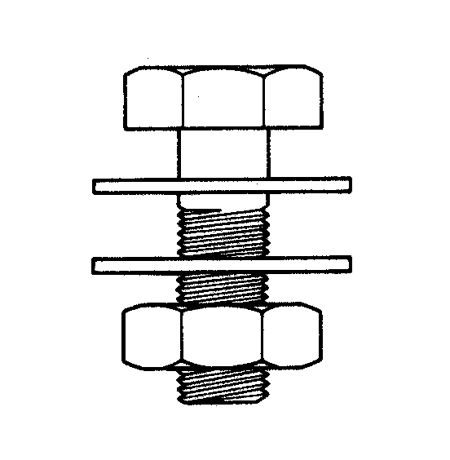

LF063-BDF NW63 Double Flange Bolts, Set of 4
LF100-BDF NW100 Double Flange Bolts, Set of 8
LF160-BDF NW160 Double Flange Bolts, Set of 8
LF200-BDF NW200 Double Flange Bolts, Set of 12
Duniway part# Description Price Request Image
LF063-BRR NW63 Rotatable Ring, Bolt, With Retainer Wire
LF100-BRR NW100 Rotatable Ring, Bolt, With Retainer Wire $185.00
LF160-BRR NW160 Rotatable Ring, Bolt, With Retainer Wire $365.00
LF200-BRR NW200 Rotatable Ring, Bolt, With Retainer Wire
Duniway part# Description Price Request Image

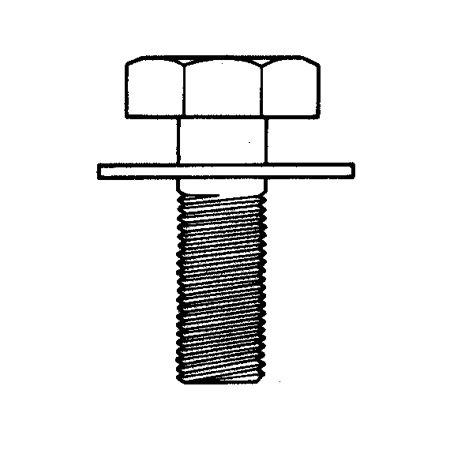

LF063-BTF NW63 Tapped Flange Bolts, Set of 4
LF100-BTF NW100 Tapped Flange Bolts, Set of 8 $7.00
LF160-BTF NW160 Tapped Flange Bolts, Set of 8 $13.50
LF200-BTF NW200 Tapped Flange Bolts, Set of 12
Duniway part# Description Price Request Image

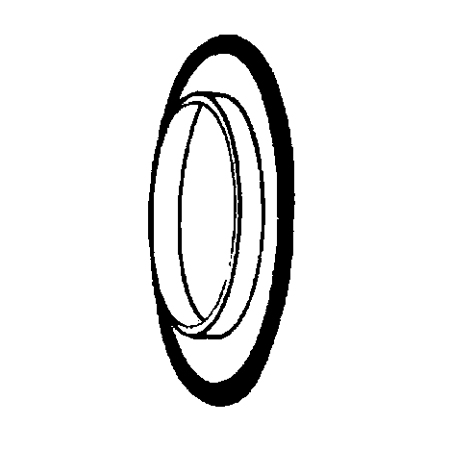

LF063-CR NW63 Centering Ring Ass'y, SST, Includes VITON O-Ring $45.00
LF100-CR NW100 Centering Ring Ass'y, SST, Includes VITON O-Ring $62.00
LF160-CR NW160 Centering Ring Ass'y, SST, Includes VITON O-Ring $76.00
LF200-CR NW200 Centering Ring Ass'y, SST, Includes VITON O-Ring $110.00
Duniway part# Description Price Request Image
LF063-CRA NW63 Centering Ring Ass'y, Aluminum, Includes VITON O-Ring $29.00
LF100-CRA NW100 Centering Ring Ass'y, Aluminum, Includes VITON O-Ring $35.00
LF160-CRA NW160 Centering Ring Ass'y, Aluminum, Includes VITON O-Ring $45.00
LF200-CRA NW200 Centering Ring Ass'y, Aluminum, Includes VITON O-Ring $63.00
Duniway part# Description Price Request Image

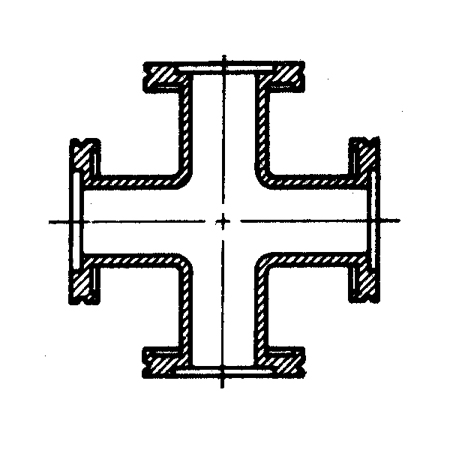

LF063-CS Cross - NW63 Flanges $380.00
LF100-CS Cross - NW100 Flanges
LF160-CS Cross - NW160 Flanges
LF200-CS Cross - NW200 Flanges
Duniway part# Description Price Request Image

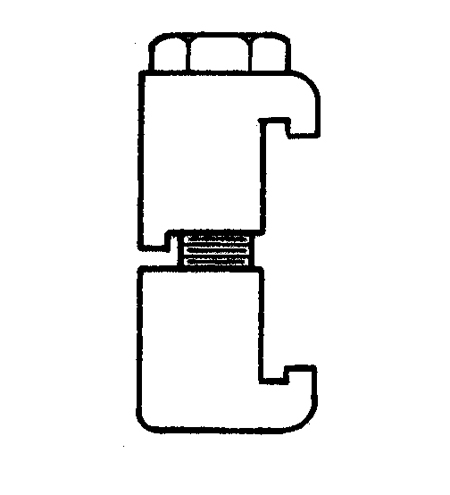

LF063-DCC NW63 LF Double Claw Clamp $6.50
LF100-DCC NW100 LF Double Claw Clamp $6.50
LF160-DCC NW160 LF Double Claw Clamp $6.50
LF200-DCC NW200 LF Double Claw Clamp $6.50
Duniway part# Description Price Request Image

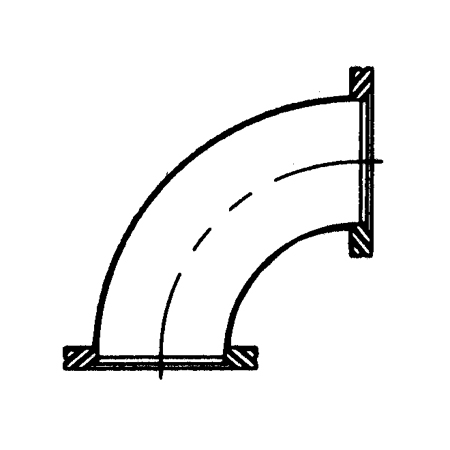

LF063-EL90 Elbow, 90, NW63 Flanges $210.00
LF100-EL90 Elbow, 90, NW100 Flanges $280.00
LF160-EL90 Elbow, 90, NW160 Flanges
LF200-EL90 Elbow, 90, NW200 Flanges
Duniway part# Description Price Request Image

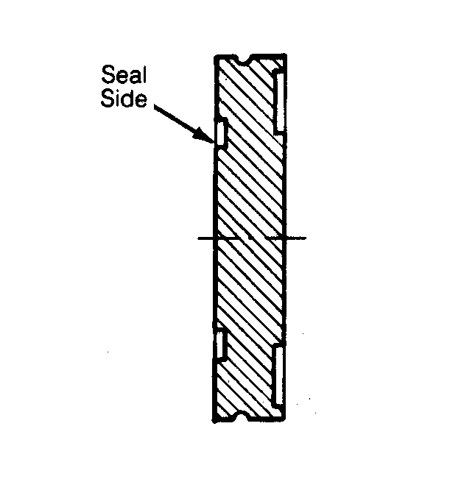

LF063-FB NW63 Blank Flange, SST $53.00
LF100-FB NW100 Blank Flange, SST $78.00
LF160-FB NW160 Blank Flange, SST $105.00
LF200-FB NW200 Blank Flange, SST $180.00
Duniway part# Description Price Request Image
LF063-FX10 Flexible Metal Hose, NW63 Flanges, L= 10" $270.00
LF063-FX20 Flexible Metal Hose, NW63 Flanges, L= 20" $360.00
LF100-FX10 Flexible Metal Hose, NW100 Flanges, L= 10" $400.00
LF100-FX20 Flexible Metal Hose, NW100 Flanges, L= 20" $430.00
Duniway part# Description Price Request Image

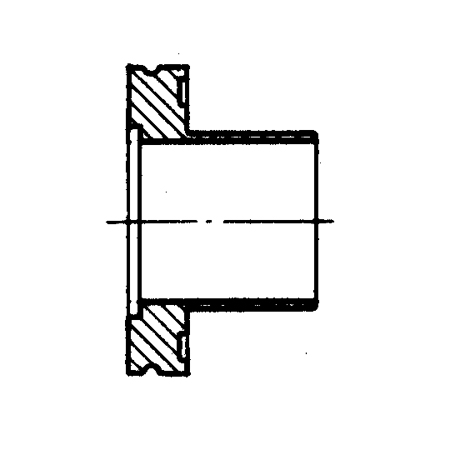

LF063-HN NW63 Half-Nipple (Long Butt Flange) $110.00
LF100-HN NW100 Half-Nipple (Long Butt Flange) $130.00
LF160-HN NW160 Half-Nipple (Long Butt Flange) $165.00
LF200-HN NW200 Half-Nipple (Long Butt Flange) $250.00
Duniway part# Description Price Request Image

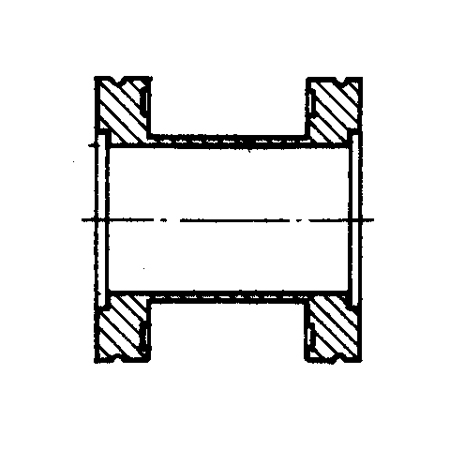

LF063-NP NW63 Nipple $205.00
LF100-NP NW 100 Nipple
LF160-NP NW160 Nipple
LF200-NP NW200 Nipple
Duniway part# Description Price Request Image

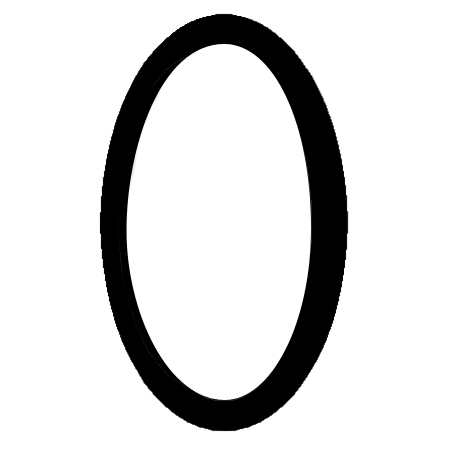

LF063-OV NW63 O-Ring Replacement, VITON $9.00
LF100-OV NW100 O-Ring Replacement, VITON $12.00
LF160-OV NW160 O-Ring Replacement, VITON $20.00
LF200-OV NW200 O-Ring Replacement, VITON $25.00
Duniway part# Description Price Request Image

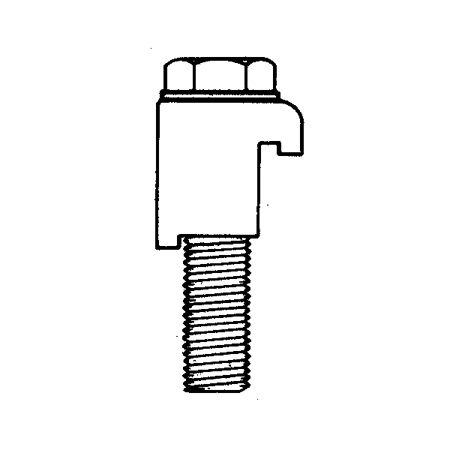

LF063-SCC NW63 LF Single Claw Clamp $5.00
LF100-SCC NW100 LF Single Claw Clamp $5.00
LF160-SCC NW160 LF Single Claw Clamp $6.00
LF200-SCC NW200 LF Single Claw Clamp $6.00
Duniway part# Description Price Request Image

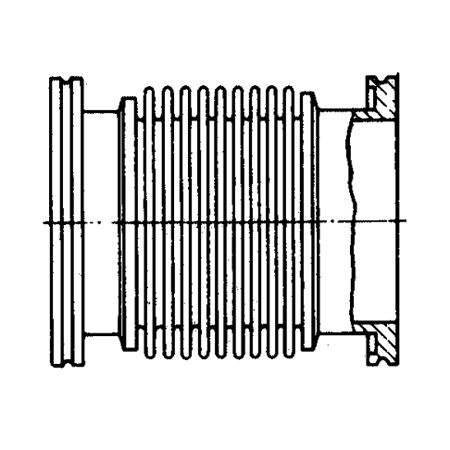

LF063-SSTB SST Bellows (Thin Wall), NW63 Flanges, L= 6" $270.00
LF100-SSTB SST Bellows (Thin Wall), NW100 Flanges, L= 6" $370.00
LF160-SSTB SST Bellows (Thin Wall), NW160 Flanges, L= 8"
LF200-SSTB SST Bellows (Thin Wall), NW200 Flanges, L= 8"
Duniway part# Description Price Request Image

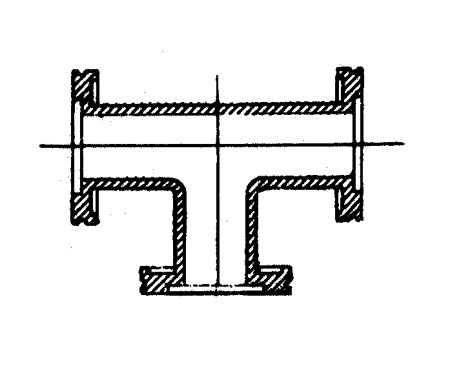

LF063-TE Tee - NW63 Flanges
LF100-TE Tee - NW100 Flanges $400.00
LF160-TE Tee - NW160 Flanges
LF200-TE Tee - NW200 Flanges
Duniway part# Description Price Request Image

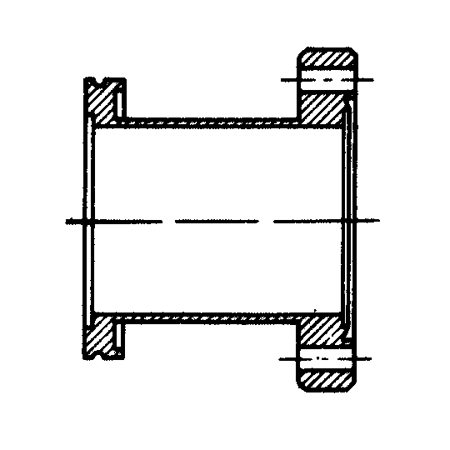

LF063X275 NW63 to 2.75" OD CFF Adapter $142.00
LF063X450 NW63 to 4.50" OD CFF Adapter $203.00
LF100X600 NW100 to 6.00" OD CFF Adapter $276.00
LF160X800 NW160 to 8.00" OD CFF Adapter $390.00
LF200X1000 NW200 to 10.00" OD CFF Adapter
Duniway part# Description Price Request Image

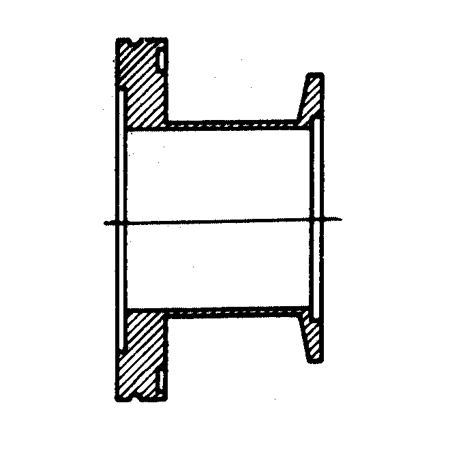

LF063XKF40 NW63 to KF40 Adapter $145.00
LF063XKF50 NW63 to KF50 Adapter $145.00
LF100XKF25 NW100 to KF25 Adapter $185.00
LF100XKF40 NW100 to KF40 Adapter $190.00
LF100XKF50 NW100 to KF50 Adapter $195.00
LF160XKF40 NW160 to KF40 Adapter $210.00
LF160XKF50 NW160 to KF50 Adapter $215.00
Duniway part# Description Price Request Image

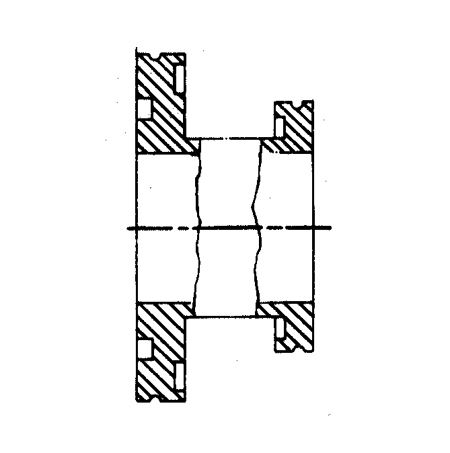

LF063XLF100 NW63 to NW100 Adapter $220.00
LF063XLF160 NW63 to NW160 Adapter
LF100XLF160 NW100 to NW160 Adapter $375.00
LF200XLF100 NW200 to NW100 Adapter $390.00
LF200XLF160 NW200 to NW160 Adapter
