Bolts, Studs, & Nuts
| Duniway part# | Description | Price | Request | Image |
|---|---|---|---|---|

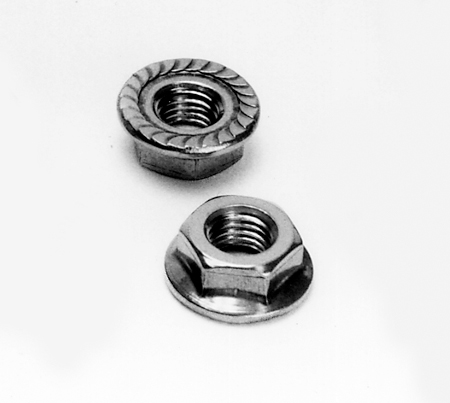

| FN-2528-100 | Flange Nuts (1/4-28), 100/pkg | $33.50 |
|
|
| FN-3124-100 | Flange Nuts (5/16-24), 100/pkg | $33.50 | ||
| Duniway part# | Description | Price | Request | Image |
|---|---|---|---|---|
| MP-0133-25 | Metric Platenuts For 1.33" OD CFF (Bolt D = 4 mm, Thread Pitch: 0.7 mm), 25/pkg | $39.50 |
|
|
| MP-0275-25 | Metric Platenuts For 2.75" OD CFF (Bolt D = 6 mm, Thread Pitch: 1.0 mm), 25/pkg | $47.45 | ||
| MP-0450-25 | Metric Platenuts For 4.50" OD CFF (Bolt D = 8 mm, Thread Pitch: 1.25 mm), 25/pkg | $58.00 | ||
| MP-0600-25 | Metric Platenuts For 6.00" OD CFF (Bolt D = 8 mm, Thread Pitch: 1.25 mm), 25/pkg | $58.00 | ||
| MP-0800-25 | Metric Platenuts For 8.00" OD CFF (Bolt D = 8 mm, Thread Pitch: 1.25 mm), 25/pkg | $58.00 | ||
| MP-1000-25 | Metric Platenuts For 10.00" OD CFF (Bolt D = 8 mm, Thread Pitch: 1.25 mm) 25/pkg | $58.00 | ||
| Duniway part# | Description | Price | Request | Image |
|---|---|---|---|---|

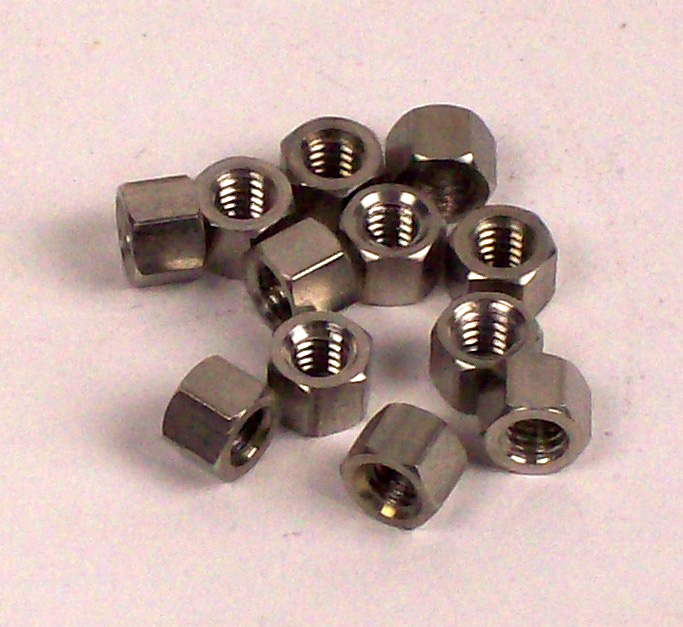

| N-MINI | Mini Hex Nuts for 1.33 CF flanges. 8-32 thread, 1/4" across the flats, 3/16" thick | $9.00 |
|
|
| Duniway part# | Description | Price | Request | Image |
|---|---|---|---|---|

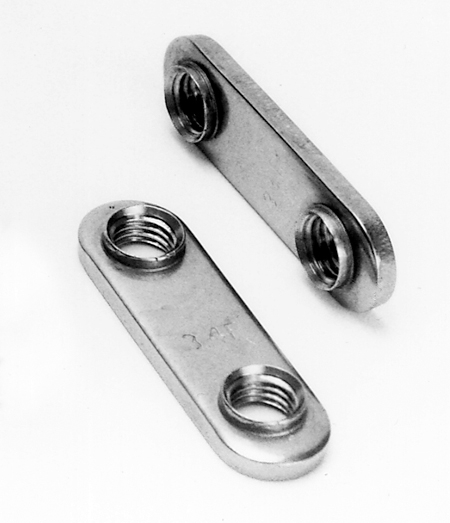

| PN-0133-025 | Platenut for 1.33" OD CF Flange (8-32), 25/pkg | $40.00 |
|
|
| PN-0133-100 | Platenut for 1.33" OD CF Flange (8-32), 100/pkg | $160.00 | ||
| PN-0218-025 | Platenut for 2.125" OD CF Flange (1/4-28), 25/pkg | $47.50 | ||
| PN-0218-100 | Platenut for 2.125" OD CF Flange (1/4-28), 100/pkg | $190.00 | ||
| PN-0275-025 | Platenut for 2.75" OD CF Flange (1/4-28), 25/pkg | $47.50 | ||
| PN-0275-100 | Platenut for 2.75" OD CF Flange (1/4-28), 100/pkg | $190.00 | ||
| PN-0338-025 | Platenut for 3.375" OD CF Flange (5/16-24), 25/pkg | $58.00 | ||
| PN-0338-100 | Platenut for 3.375" OD CF Flange (5/16-24), 100/pkg | $232.00 | ||
| PN-0450-025 | Platenut for 4.50" OD CF Flange (5/16-24), 25/pkg | $58.00 | ||
| PN-0450-100 | Platenut for 4.50" OD CF Flange (5/16-24), 100/pkg | $232.00 | ||
| PN-0458-025 | Platenut for 4.625" OD CF Flange (5/16-24), 25/pkg | $58.00 | ||
| PN-0458-100 | Platenut for 4.625" OD CF Flange (5/16-24), 100/pkg | $232.00 | ||
| PN-0600-025 | Platenut for 6.00" OD CF Flange (5/16-24), 25/pkg | $58.00 | ||
| PN-0600-100 | Platenut for 6.00" OD CF Flange (5/16-24), 100/pkg | $232.00 | ||
| PN-0800-025 | Platenut for 8.00" OD CF Flange (5/16-24), 25/pkg | $58.00 | ||
| PN-0800-100 | Platenut for 8.00" OD CF Flange (5/16-24), 100/pkg | $232.00 | ||
| PN-1000-025 | Platenut for 10.00" OD CF Flange (5/16-24), 25/pkg | $58.00 | ||
| PN-1000-100 | Platenut for 10.00" OD CF Flange (5/16-24), 100/pkg | $232.00 | ||
| PN-1200-025 | Platenut for 12.00" OD CF Flange (5/16-24), 25/pkg | $58.00 | ||
| PN-1200-100 | Platenut for 12.00" OD CF Flange (5/16-24), 100/pkg | $232.00 | ||
| Duniway part# | Description | Price | Request | Image |
|---|---|---|---|---|

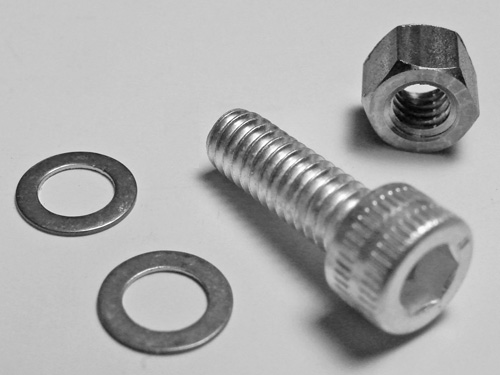

| SAN-32-075 | Silver-Plated Bolts, Allen Head, for 1.33" OD CF Flanges, (8-32 X 0.75") - with Hex Nuts & Washers, 25/pkg | $28.00 |
|
|
| Duniway part# | Description | Price | Request | Image |
|---|---|---|---|---|

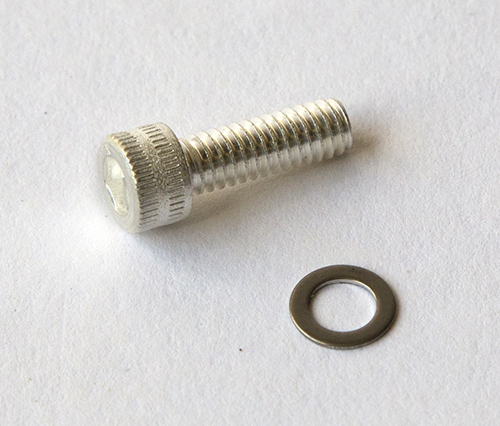

| SAX-32-050 | Silver-Plated Bolts, Allen Head, for 1.33" OD CF Tapped Flanges, (8-32 X 0.50") - with washers, 25/pkg | $21.50 |
|
|
| Duniway part# | Description | Price | Request | Image |
|---|---|---|---|---|

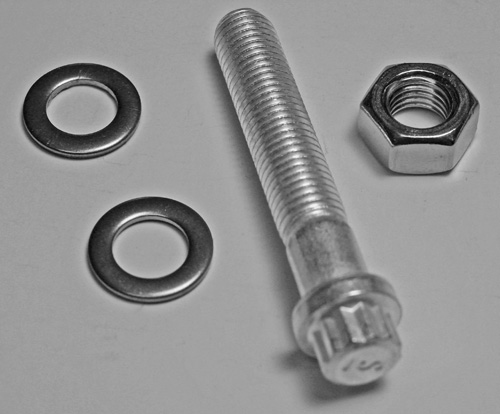

| SBN-24-175 | Silver-Plated Bolts, 12-Point Head, for 3.375" OD CF Flanges, (5/16-24 x 1.75") - with Hex Nuts & Washers, 25/pkg | $39.00 |
|
|
| SBN-24-200 | Silver-Plated Bolts, 12-Point Head, for 4.50" or 6.00" OD CF Flanges, (5/16-24 x 2.00") - with Hex Nuts & Washers, 25/pkg | $44.00 | ||
| SBN-24-225 | Silver-Plated Bolts, 12-Point Head, for 6.00" or 8.00" OD CF Flanges, (5/16-24 x 2.25") - with Hex Nuts & Washers, 25/pkg | $46.00 | ||
| SBN-24-250 | Silver-Plated Bolts, 12-Point Head, for 10.00" OD CF Flanges, (5/16-24 x 2.50") - with Hex Nuts & Washers, 25/pkg | $50.25 | ||
| SBN-28-125 | Silver-Plated Bolts, 12-Point Head, for 2.75" OD CF Flanges, (1/4-28 x 1.25") - with Hex Nuts & Washers, 25/pkg | $26.75 | ||
| SBN-28-212 | Silver-Plated Bolts, 12-Point Head, for 2.75" OD CF Flanges, (1/4-28 x 2.125") - with Hex Nuts & Washers, 25/pkg | $35.50 |
|
|
| Duniway part# | Description | Price | Request | Image |
|---|---|---|---|---|
| SBN-28-150 | Silver-Plated Non-Standard Bolts, 12-Point Head, (1/4-28 x 1.50") with Nuts & Washers, 25/pkg | $39.00 |
|
|
| SBN-28-175 | Silver-Plated Non-Standard Bolts, 12-Point Head, (1/4-28 x 1.75") with Nuts & Washers, 25/pkg | $42.00 | ||
| SBX-28-050 | Silver-Plated Non-Standard Bolts, 12-Point Head, (1/4-28 x 0.50") - with Washers, 25/pkg | $30.00 |
|
|
| SBX-28-087 | Silver-Plated Bolts, 12-Point Head, for 2.75" OD CF Tapped Flanges, (1/4-28 x 0.875") - with Washers, 25/pkg | $25.50 | ||
| SBX-28-100 | Silver-Plated Non-Standard Bolts, 12-Point Head, (1/4-28 x 1.00") - with Washers, 25/pkg | $33.45 | ||
| Duniway part# | Description | Price | Request | Image |
|---|---|---|---|---|

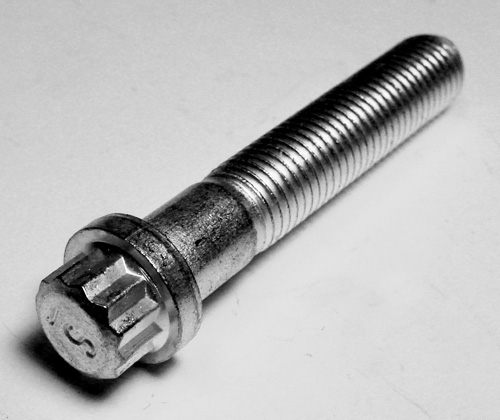

| SBX-24-075 | Silver-Plated Non-Standard Bolts, 12-Point Head, (5/16-24 x 0.75") - with Washers, 25/pkg | $39.25 |
|
|
| SBX-24-100 | Silver-Plated Non-Standard Bolts, 12-Point Head, (5/16-24 x 1.00") - with Washers, 25/pkg | $37.00 | ||
| SBX-24-150 | Silver-Plated Non-Standard Bolts, 12-Point Head, (5/16-24 x 1.50") - with Washers, 25/pkg | $40.00 |
|
|
| SBX-24-200 | Silver-Plated Bolts, 12-Point Head, (5/16-24 x 2.00") - with Washers, 25/pkg | $41.00 |
|
|
| SBX-24-225 | Silver-Plated Bolts, 12-Point Head, (5/16-24 x 2.25") - with Washers, 25/pkg | $43.25 | ||
| SBX-24-250 | Silver-Plated Bolts, 12-Point Head, (5/16-24 x 2.50") - with Washers, 25/pkg | $45.00 | ||
| Duniway part# | Description | Price | Request | Image |
|---|---|---|---|---|
| SBX-24-125 | Silver-Plated Bolts, 12-Point Head, for 3.375" or 4.50" or 6.00" OD CF Tapped Flanges, (5/16-24 x 1.25") - with Washers, 25/pkg | $31.75 |
|
|
| SBX-24-175 | Silver-Plated Bolts, 12-Point Head, for 8.00" or 10.00" OD CF Tapped Flanges, (5/16-24 x 1.75") - with Washers, 25/pkg | $36.00 |
|
|
| Duniway part# | Description | Price | Request | Image |
|---|---|---|---|---|

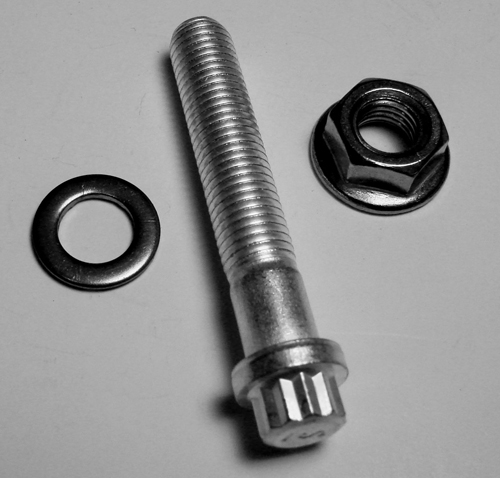

| SFBN-24-175 | Silver-Plated Bolts, 12-Point Head, for 3.375" OD CF Flanges, (5/16-24 x 1.75") - with Flangenuts & Washers, 25/pkg | $40.50 |
|
|
| SFBN-24-200 | Silver-Plated Bolts, 12-Point Head, for 4.50" or 6.00" OD CF Flanges, (5/16-24 x 2.00") - with Flangenuts & Washers, 25/pkg | $47.25 | ||
| SFBN-24-225 | Silver-Plated Bolts, 12-Point Head, for 6.00" or 8.00" OD CF Flanges, (5/16-24 x 2.25") - with Flangenuts & Washers, 25/pkg | $48.00 | ||
| SFBN-24-250 | Silver-Plated Bolts, 12-Point Head, for 10.00" OD CF Flanges, (5/16-24 x 2.50") - with Flangenuts & Washers, 25/pkg | $52.00 | ||
| SFBN-28-125 | Silver-Plated Bolts, 12-Point Head, for 2.75" OD CF Flanges, (1/4-28 x 1.25") - with Flangenuts & Washers, 25/pkg | $28.00 | ||
| SFBN-28-212 | Silver-Plated Bolts, 12-Point Head, for 2.75" OD CF Flanges, (1/4-28 x 2.125") - with Flangenuts & Washers, 25/pkg | $37.00 | ||
| Duniway part# | Description | Price | Request | Image |
|---|---|---|---|---|

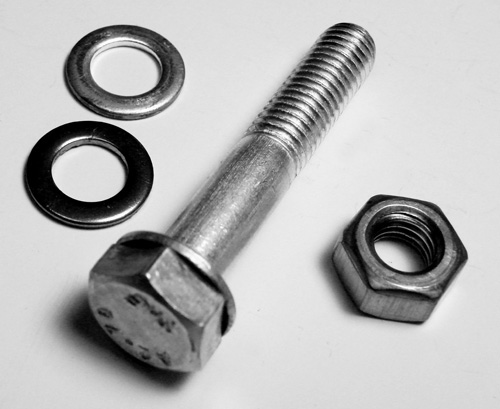

| SMN-M6-35 | Silver Plated Metric Bolts, Hex Head, for 2.75" OD CF Flanges, (D-6 mm, L=35 mm, Thread Pitch: 1 mm) - with Hex Nuts & Washers, 25/pkg | $15.00 |
|
|
| SMN-M8-55 | Silver Plated Metric Bolts, Hex Head, for 4.00" or 6.00" OD CF Flanges, (D-8 mm, L=55 mm, Thread Pitch: 1.25 mm) - with Hex Nuts & Washers, 25/pkg | $27.25 | ||
| Duniway part# | Description | Price | Request | Image |
|---|---|---|---|---|

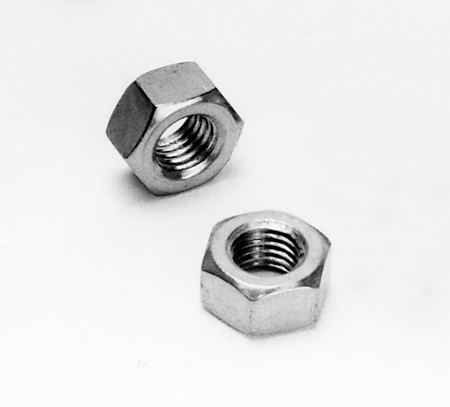

| SN-1/4 | Silver Plated Nuts (Bolt D=0.25", 28 Threads per Inch), 25/pkg | $9.25 |
|
|
| SN-5/16 | Silver Plated Nuts (Bolt D=5/16", 24 Threads per Inch), 25/pkg | $9.25 | ||
| Duniway part# | Description | Price | Request | Image |
|---|---|---|---|---|

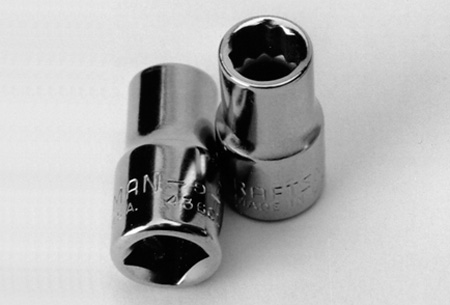

| SOCKET-1/4 | 1/4" 12-Point Socket for 1/4 " Drive | $11.00 |
|
|
| Duniway part# | Description | Price | Request | Image |
|---|---|---|---|---|

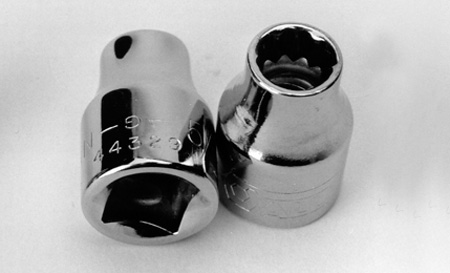

| SOCKET-5/16 | 5/16" 12-Point Socket for 3/8" Drive | $11.00 |
|
|
| Duniway part# | Description | Price | Request | Image |
|---|---|---|---|---|

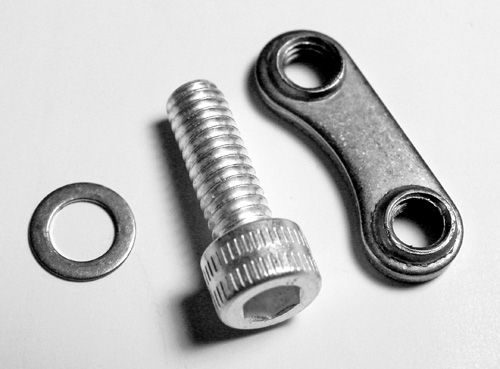

| SPAN32-075-133 | Silver-Plated Bolts, Allen Head, for 1.33" OD CF Flanges, (8-32 x 0.75") - with Platenuts & Washers, 25/pkg | $40.00 |
|
|
| Duniway part# | Description | Price | Request | Image |
|---|---|---|---|---|

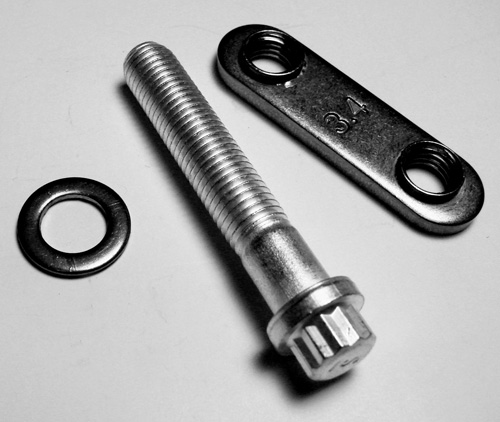

| SPBN24-175-338 | Silver-Plated Bolts, 12-Point Head, for 3.375" OD CF Flanges, (5/16-24 x 1.75") - with Platenuts & Washers, 25/pkg | $57.75 |
|
|
| SPBN24-200-450 | Silver-Plated Bolts, 12-Point Head, for 4.50" OD CF Flanges, (5/16-24 x 2.00") - with Platenuts & Washers, 25/pkg | $62.50 | ||
| SPBN24-200-600 | Silver-Plated Bolts, 12-Point Head, for 6.00" OD CF Flanges, (5/16-24 x 2.00") - with Platenuts & Washers, 25/pkg | $62.50 | ||
| SPBN24-225-600 | Silver-Plated Bolts, 12-Point Head, for 6.00" OD CF Flanges, (5/16-24 x 2.25") - with Platenuts & Washers, 25/pkg | $63.00 | ||
| SPBN24-225-800 | Silver-Plated Bolts, 12-Point Head, for 8.00" OD CF Flanges, (5/16-24 x 2.25") - with Platenuts & Washers, 25/pkg | $63.00 | ||
| SPBN24-250-1000 | Silver-Plated Bolts, 12-Point Head, for 10.00" OD CF Flanges, (5/16-24 x 2.50") - with Platenuts & Washers, 25/pkg | $65.00 | ||
| SPBN28-125-275 | Silver-Plated Bolts, 12-Point Head, for 2.75" OD CF Flanges, (1/4-28 x 1.25") - with Platenuts & Washers, 25/pkg | $42.00 | ||
| SPBN28-212-275 | Silver-Plated Bolts, 12-Point Head, for 2.75" OD CF Flanges, (1/4-28 x 2.125") - with Platenuts & Washers, 25/pkg | $48.50 | ||
| Duniway part# | Description | Price | Request | Image |
|---|---|---|---|---|

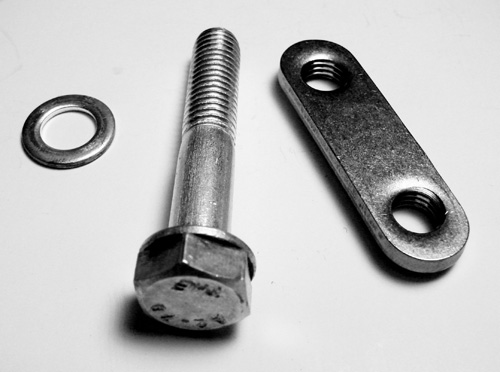

| SPMN-M6-35-275 | Silver Plated Metric Bolts, Hex Head, for 2.75" OD CF Flanges, (D-6 mm, L=35 mm, Thread Pitch: 1 mm) - w/ Platenuts & Washers, 25/pkg | $38.00 |
|
|
| SPMN-M8-55-450 | Silver Plated Metric Bolts, Hex Head, for 4.50" OD CF Flanges, (D-8 mm, L=55 mm, Thread Pitch: 1.25 mm) - w/ Platenuts & Washers, 25/pkg | $46.50 | ||
| SPMN-M8-55-600 | Silver Plated Metric Bolts, Hex Head, for 6.00" OD CF Flanges, (D-8 mm, L=55 mm, Thread Pitch: 1.25 mm) - w/ Platenuts & Washers, 25/pkg | $46.50 | ||
| Duniway part# | Description | Price | Request | Image |
|---|---|---|---|---|

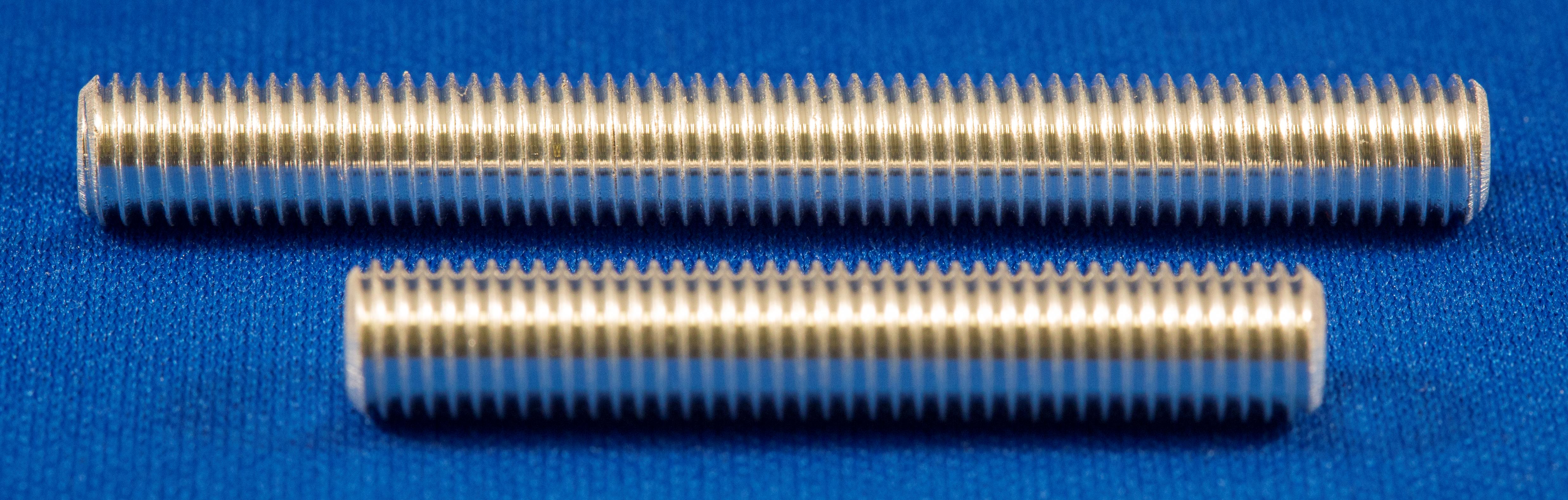

| SR-24-200 | Silver-Plated Studs (5/16-24 x 2.00"), 25/pkg | $38.00 |
|
|
| SR-24-250 | Silver-Plated Studs (5/16-24 x 2.50"), 25/pkg | $46.00 | ||
| SR-24-300 | Silver-Plated Studs (5/16-24 x 3.00"), 25/pkg | $52.50 | ||
| SR-28-150 | Silver-Plated Studs (1/4-28 x 1.50"), 25/pkg | $27.00 | ||
| SR-28-225 | Silver-Plated Studs (1/4-28 x 2.25"), 25/pkg | $32.00 | ||
| Duniway part# | Description | Price | Request | Image |
|---|---|---|---|---|

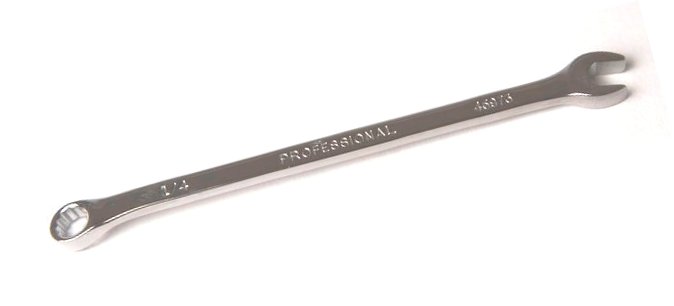

| WRENCH-1/4 | 12pt 1/4" Combination Wrench | $14.00 |
|
|
| WRENCH-5/16 | 12pt 5/16" Combination Wrench. | $14.00 | ||
