908A - Diaphragm, Dual

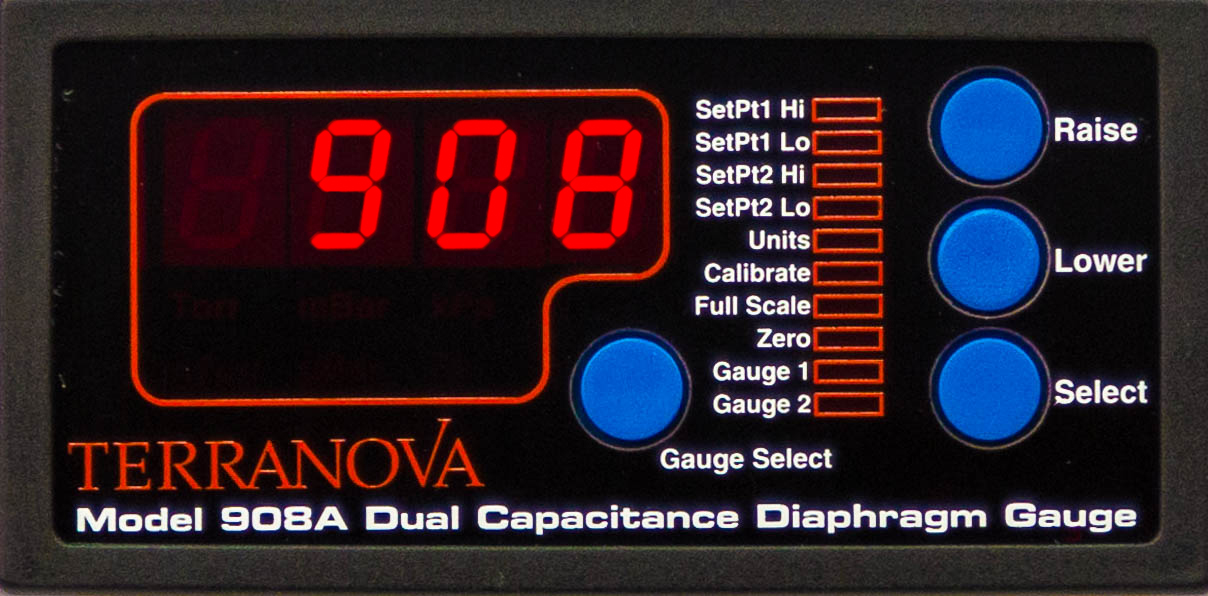

Terranova® Model 908 A
Dual Capacitance Diaphragm Vacuum Gauge Controller
Accurate, Gas-Species Independent Pressure Measurement with Two CDG Tubes

FEATURES:

  • Low Cost
  • Calibrated logarithmic analog output
  • 1/8 DIN Package
  • CE Compliant, UL Listed
  • Two process control set points
  • RS-232 serial input/output
  • Universal Power Supply
  • Current of 0.75 amp for heated tubes
  • Uses all standard CDG sensor tubes: MKS, Inficon, Varian, Leybold
  • Covers CDG Sensor Tubes with Full Scale Ranges 20 mTorr to 10 KTorr
  • Selectable Pressure units: Torr, mBar, Pascal

Includes Power Cord
Sensor Tube and Cable Not Included
Sensors available here

Duniway part# Description Price Request Image
TERRA-908A Terranova 908A Vacuum Gauge Controller for 2 Terranova 808 or 2 MKS 722B Diaphragm Sensors $750.00
Duniway part# Description Price Request Image
722B-1 Type 722B MKS Baratron Capacitance Diaphragm Vacuum Sensor, 1/2" Tube Port (1 Torr Full Scale Range) $1,270.00
722B-1000 Type 722B MKS Baratron Capacitance Diaphragm Vacuum Sensor, 1/2" Tube Port (1000 Torr Full Scale Range) $1,131.00
Duniway part# Description Price Request Image
808-1000-NPT Type 808 Terranova Piezo Diaphragm Vacuum Sensor, 1/8" NPT Port (1000 Torr Full Scale Range) $588.00
808-C100-NPT Type 808 Terranova Piezo Diaphragm Vacuum Sensor, 1/8" NPT Port (100 Torr Full Scale Range) $588.00
Duniway part# Description Price Request Image
CDG-CBL-2-10 Diaphragm Gauge Cable From Terra 908A to 15-pin connector on 2 Type 808 or 722B Sensors , 10 ft Long $135.00
