907 - Hybrid Convection, Diaphragm

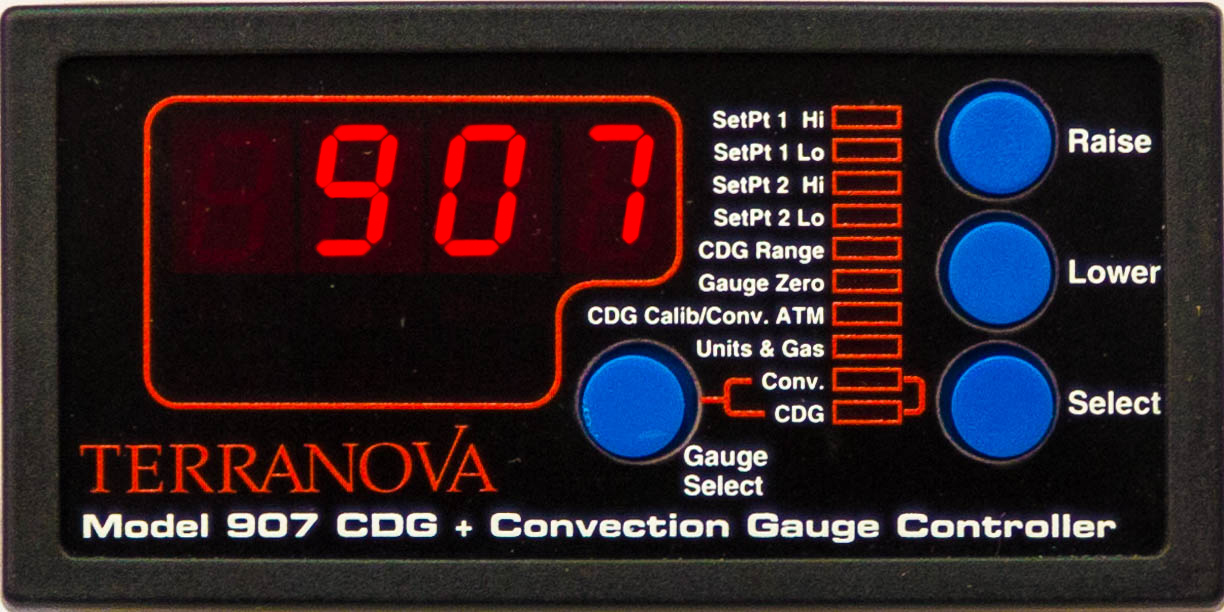

Terranova® Model 907
Hybrid Convection/Diaphragm Vacuum Gauge Controller
Versatile Hybrid Controller for Convection and Diaphragm Tubes

FEATURES:

  • Low Cost
  • CE Compliant, UL Listed
  • 1/8 DIN Package
  • Two process control set points
  • RS-232 serial input/output
  • Universal Power Supply
  • Choice of Sensor Response Curves
  • Calibrated logarithmic analog output
  • Covers 10-4 Torr to 10 kTorr
  • 0.5 amp current for Heated CDG’s
  • Uses one Diaphragm sensor tube Duniway, MKS, Inficon, Horiba
  • Selectable Pressure units: Torr, mBar, Pascal
  • Uses one Convection sensor tube HPS/MKS, GP-275, or equal

Includes Power Cord
Sensor Tube and Cable Not Included
Sensors available here, and also on this page

DUNIWAY PART # Description PRICE REQUEST Image
TERRA-907 Terranova 907 Hybrid Vacuum Gauge Controller for 1-808 or 722B Diaphragm & 1-275 Convection Sensor
$625.00
DUNIWAY PART # Description PRICE REQUEST Image

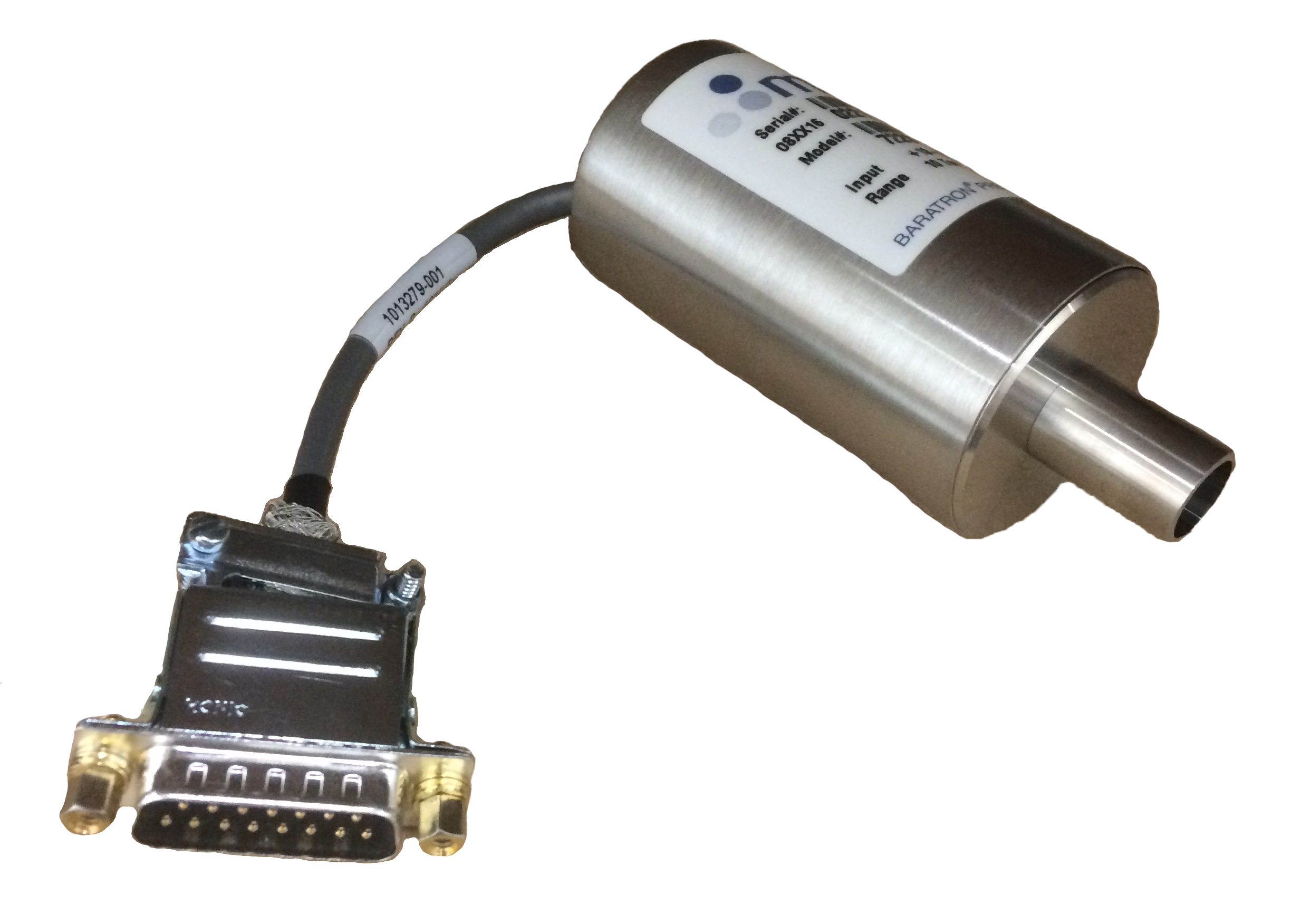

722B-1 Type 722B MKS Baratron Capacitance Diaphragm Vacuum Sensor, 1/2" Tube Port (1 Torr Full Scale Range)
$1,270.00
722B-10 Type 722B MKS Baratron Capacitance Diaphragm Vacuum Sensor, 1/2" Tube Port (10 Torr Full Scale Range)
$1,131.00
722B-100 Type 722B MKS Baratron Capacitance Diaphragm Vacuum Sensor, 1/2" Tube Port (100 Torr Full Scale Range)
$1,131.00
722B-1000 Type 722B MKS Baratron Capacitance Diaphragm Vacuum Sensor, 1/2" Tube Port (1000 Torr Full Scale Range)
$1,131.00
DUNIWAY PART # Description PRICE REQUEST Image

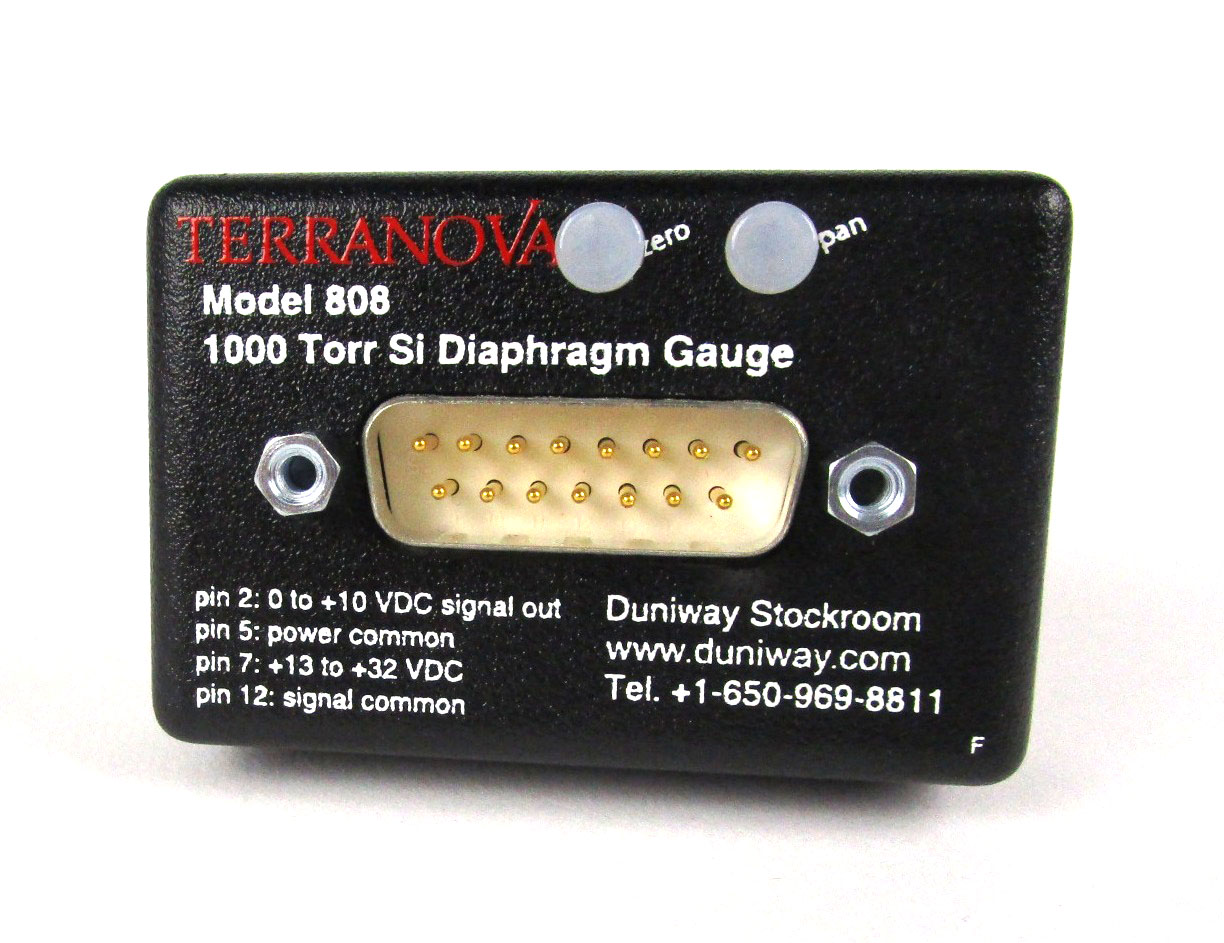

808-1000-NPT Type 808 Terranova Piezo Diaphragm Vacuum Sensor, 1/8" NPT Port (1000 Torr Full Scale Range)
$395.00
808-C100-NPT Type 808 Terranova Piezo Diaphragm Vacuum Sensor, 1/8" NPT Port (100 Torr Full Scale Range)
$395.00
DUNIWAY PART # Description PRICE REQUEST Image

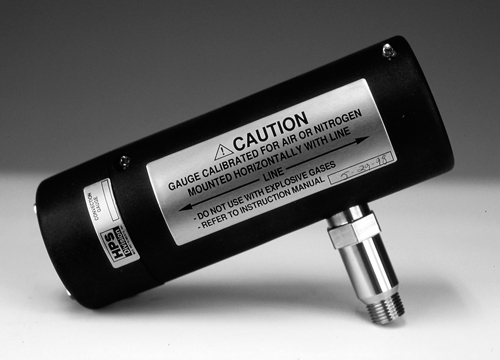

CEP-HPS-SH MKS/HPS Convection Enhanced Pirani Gauge Sensor Tube, Shielded 1/8" NPT Port
$305.00
DUNIWAY PART # Description PRICE REQUEST Image

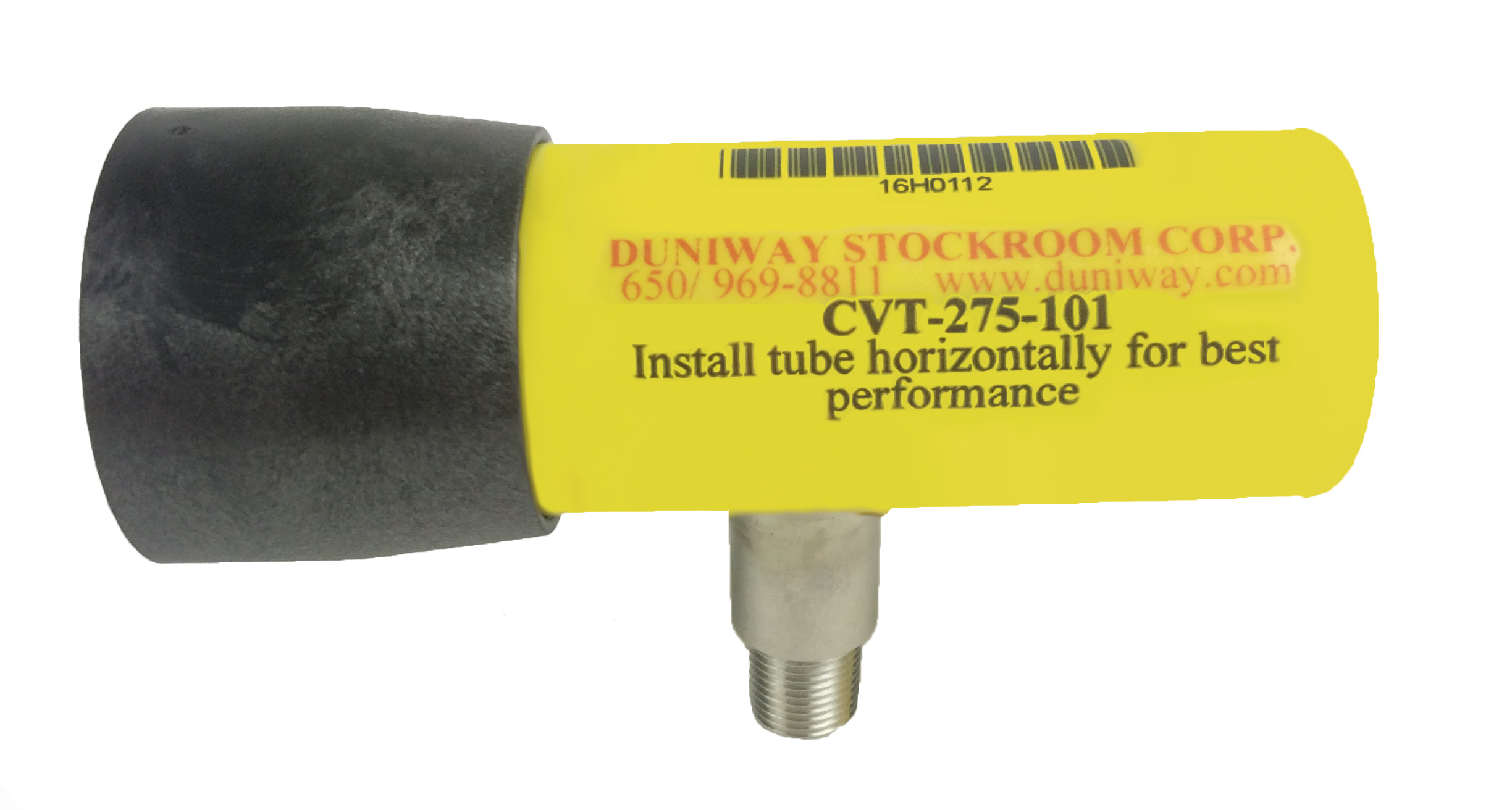

CVT-275-101 ConvecTech TM Convection Gauge Sensor Tube, 1/8" NPT Port; (Equivalent to GP 275071)
$127.00
DUNIWAY PART # Description PRICE REQUEST Image

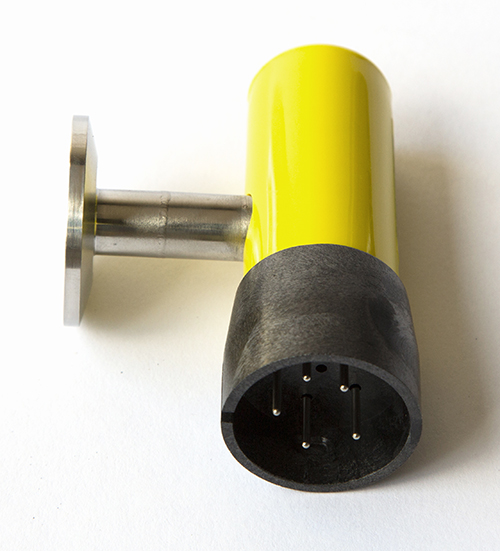

CVT-275-KF25 ConvecTech TM Convection Gauge Sensor Tube, KF25 Port
$166.00
DUNIWAY PART # Description PRICE REQUEST Image

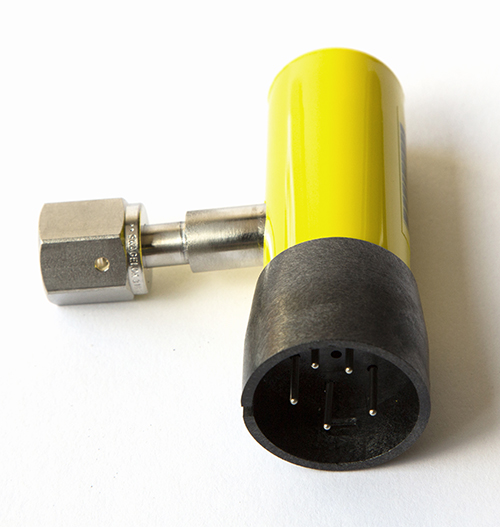

CVT-275-VCR-4 ConvecTech TM Convection Gauge Sensor Tube, 1/4" Female VCR Port
$166.00
DUNIWAY PART # Description PRICE REQUEST Image

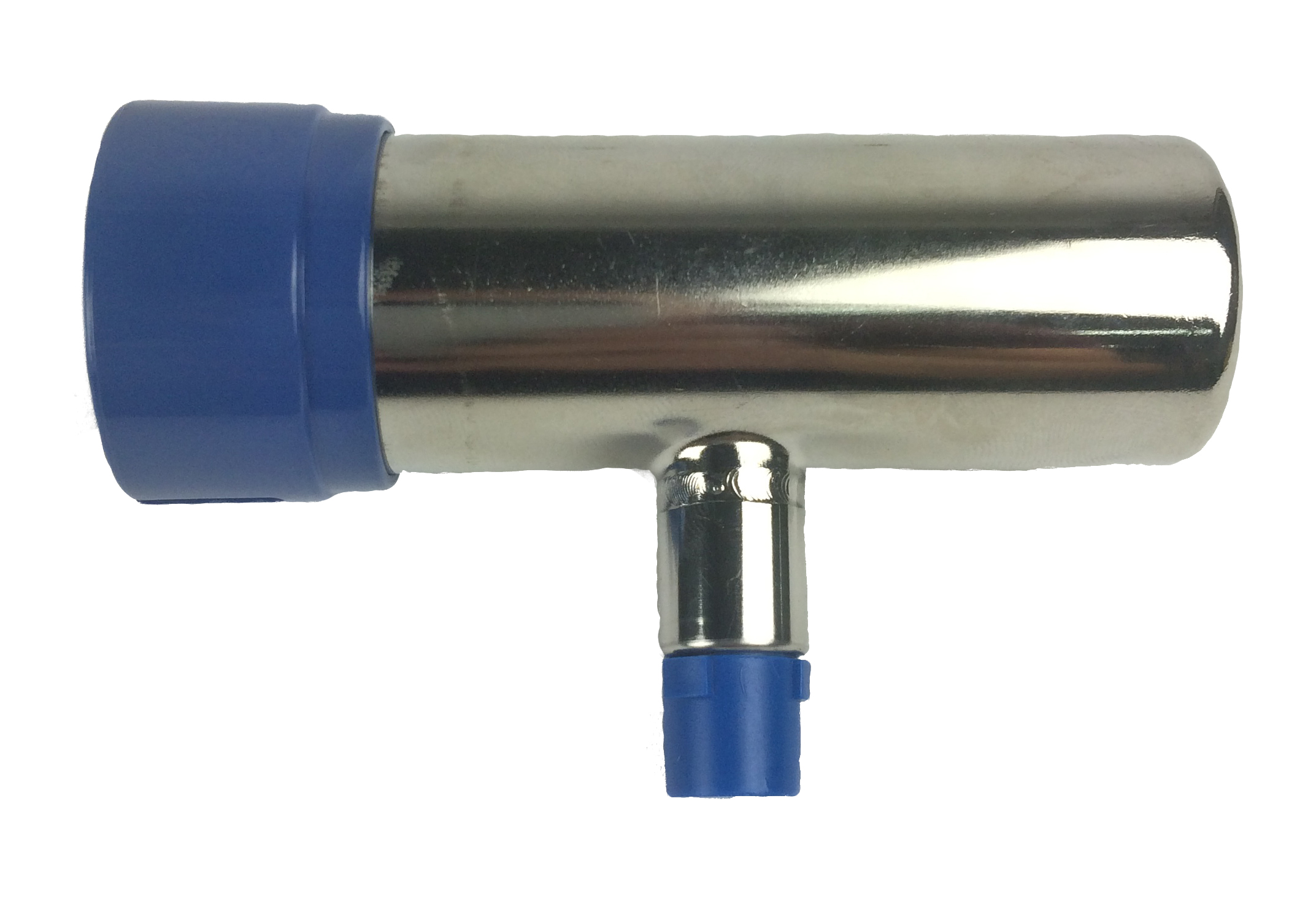

GP275-071 Convectron Gauge Sensor Tube, 1/8" NPT Port
$191.00
DUNIWAY PART # Description PRICE REQUEST Image

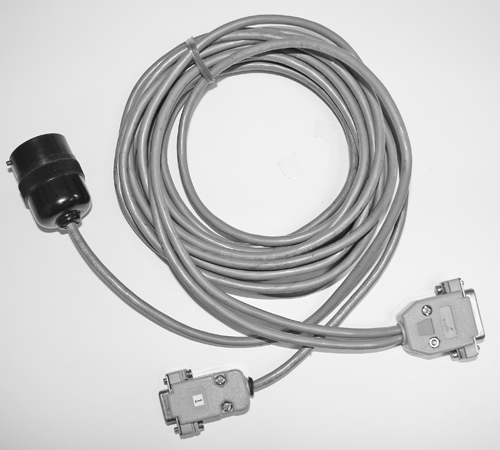

HYB-275 Dual Gauge Cable from Terra 907 to 1-808 or 722B Diaphragm & 1-275 Convection Sensor, 10 ft Long
$105.00
DUNIWAY PART # Description PRICE REQUEST Image

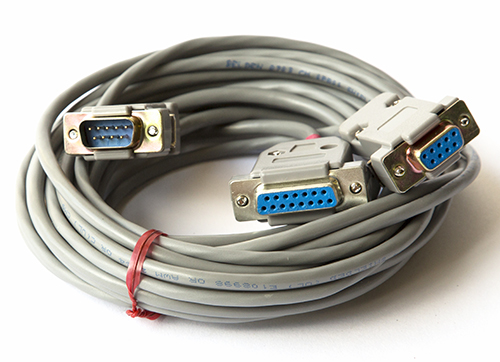

HYB-CEP Dual Gauge Cable from Terra 907 to 1-HPS/MKS 317 CEP Sensor and 1-MKS 722B CDG , 10 ft Long
$60.00
